High Pressure Butt Fusion Welding Machine China Manufacturer
Features&Advantages:
- Hydraulic Valves Use a cartridge design for easy maintenance and repair
- Trimmer equipped Makita electric drill, worm-driven power system
- Outer and Inner Clamps made from machining engraved aluminum
- Hydraulic hoses on the frame are made of stainless steel preventing rust and cracking
- Heating plate equipped with Dupont Teflon Coating, stainelss made junction box
- Robust Hydraulic System ensures precise pressure application, enhancing the quality and strength of welds.
- Advanced Heating Plate: Features a Teflon-coated heating plate ensuring consistent heating and extending the service life of the equipment.
- User-Friendly Control Panel: The intuitive interface easily adjusted parameters
- Safety Features: temperature sensors and emergency stop buttons
- High-precision control: advanced hydraulic system and control panel
- Rugged and durable structure ensuring the long-term reliability of the equipment.
- Easy to operate: Humanized design, equipped with an intuitive interface, improves work efficiency.
- Wide range of application: water infrastructure, gas distribution systems, industrial pipelines, and mining industry
- Equipped with multiple safety protection mechanisms to ensure the safety of operators and reduce the risk of accidents.
High Pressure Butt Fusion Welding Machine Series

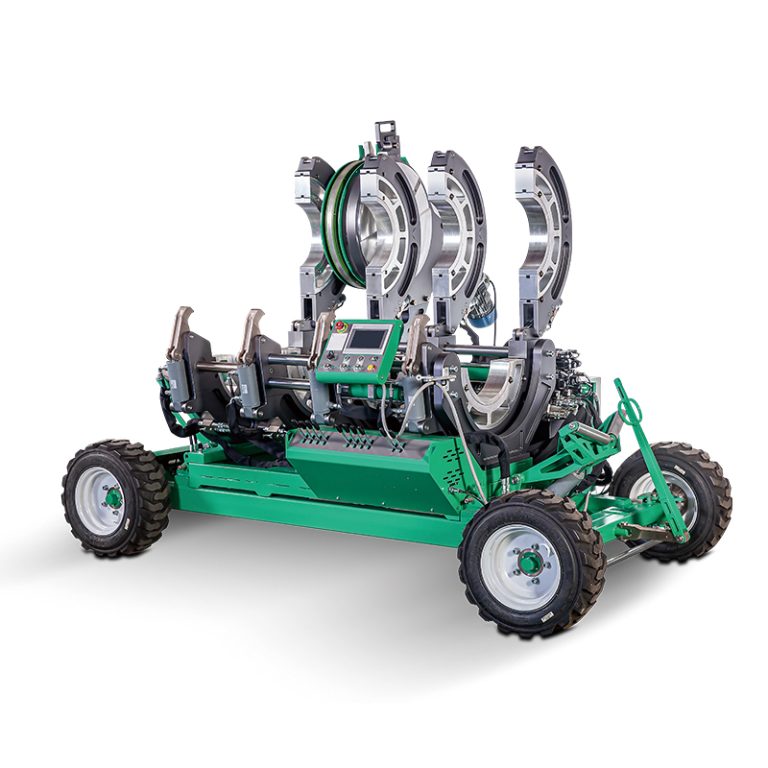

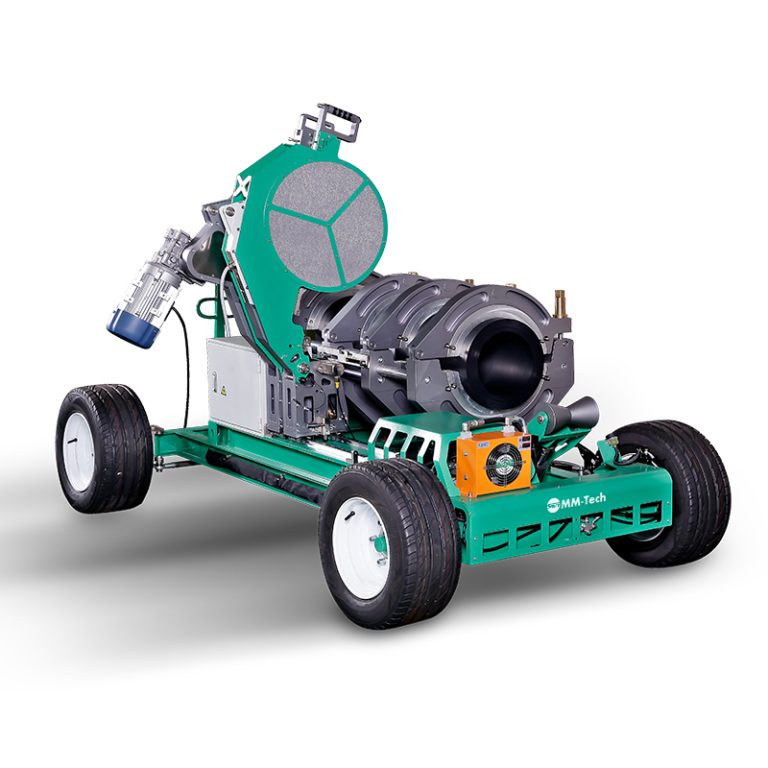

Mazinger Trailer Series Comparison
| 250 | 250i | 355 | 355i | 630 | 630i | 1200 | 1200i | |
| The frame structure with a guide rail design enhances strength and even distribution of welding force | √ | √ | ||||||
| High-force cylinder available | √ | √ | √ | √ | √ | √ | √ | √ |
| Data logger (PEWELDBANK) is compatible | √ | √ | √ | √ | ||||
| A responsive touch screen and step-by-step fusion guide | √ | √ | √ | √ | ||||
| The heater and facer easily convert to a top-loading design for improved access in confined spaces. | √ | √ | √ | √ | √ | √ | √ | √ |
| Hydraulic pivoting heating plate with protection frame and insulated shield. | √ | √ | √ | √ | √ | √ | √ | √ |
| Hydraulic pivoting high capacity trimmer driven by electric motor | √ | √ | √ | √ | ||||
| A removable 4th jaw enhances the ease of fusing prefabricated fittings onto pipes. | √ | √ | √ | √ | √ | √ | √ | √ |
| Hydraulic pipe lift on both sides aimed in loading and unloading pipe | One Side | √ | √ | √ | √ | |||
| Clamp knobs equipped with thrust bearings significantly reduce the force needed to securely clamp and round the pipe.” | √ | √ | √ | √ | ||||
| Hydraulic clamping | √ | √ | √ | √ | ||||
| Removable machine chassis for in-ditch use | √ | √ | √ | |||||
| ISO inserts, IPS inserts, DIPS inserts available | √ | √ | √ | √ | √ | √ | √ | √ |
| Worry- free heating plate | √ | √ | √ | √ | ||||
| ISO-compliant industrial Teflon-coated heater plates | √ | √ | √ | √ | √ | √ | √ | √ |
| Rugged outriggers for stability | √ | √ | ||||||
High Pressure Butt Fusion Welding Machine Series Comparison
| V160-V355 | V450-V800 | V1000-V1200 | V1600-V3000 | |||
| The open-frame HPU design provides convenient access for maintenance | √ | √ | √ | |||
| Data logger compatible | √ | √ | √ | √ | ||
| Hydraulic unit encased by detachable frame, easier maintenance and repair | √ | √ | √ | |||
| Accurate and maintenance-free gauge showing the welding pressure | √ | √ | √ | |||
| USB charging port ready for your mobile device | √ | √ | √ | |||
| Cylinders with both low and high force options are available for increased versatility | √ | √ | √ | √ | ||
| ISO inserts, IPS inserts, DIPS inserts available | √ | √ | √ | √ | ||
| The narrow jaws facilitate fusion of flanges, outlet branches of tees, and a wide range of fittings | √ | √ | √ | |||
| The conversion from a 4-jaw to a 3-jaw carriage is designed for working in tight spaces | √ | |||||
| Aluminum upper and bottom clamp | √ | √ | √ | |||
| The heating plate is equipped with interchangeable heating elements | √ | |||||
| Learn More > | Learn More > | Learn More > | ||||
Certification:
CE certificate
GB/T 19001-2016/IS0 9001:2015
FAQ:
What is The Warranty Period Of MM-TECH Hdpe Fusion Machine?
All machines made by MM-TECH are under a 2 years warranty since dispatched from MM-TECH factory. For more details, please consult with MM-TECH sales and view <MM-TECH WARRANTY CERTIFICATE>.
What standards of Thermoplastic Pipe are applicable?
Welding standard according to Germany Standard: DVS2207-1-2016
International Standard:1SO21307-2017
America Standard: ASTM F2620-19 (high pressure)
America Standard:ASTM F714-13
How Could We Select The Right Equipment For Our Project?
MM-TECH could offer a variety of pipe fusion machine size up to 3000mm O.D. And each machine has the model number that indicates the maximum pipe size it can fuse, For example, butt fusion machine V630 could fuse maximum pipe 630mm 0.D., and from the specification chart, you could always find the minimum size it can fuse. lf you have specific requirements for your projects, please consult with MM-TECH sales
How Long Should it Take To Make A Fusion Joint?
Time needed to make a fusion joint depends on the welding norms, pipe material, pipe diameter, pipe wall thickness.and operator experiences
How Could We Calculate The Soaking Time?
The proper soaking time varies depending on the pipe material, pipe diameter, and wall thickness. You could always find the soaking time from MM-TECH operation manual for the polyethylene welding machine
After Welding, Could We Lay Down The Jointed Pipes On The Ground For Cooling Process?
You are not allowed to lay down the jointed pipes on the ground after fusion welding, The jointed pipe should stay in the machine with/without pressure (according to different welding norms) until the cooling time ends
Quality Warranty:
Machines Quality Warranty: 24 months. If any main parts are broken or can not work under normal operating, we will provide them for free
After-sales Service:
24/7 after sales service
