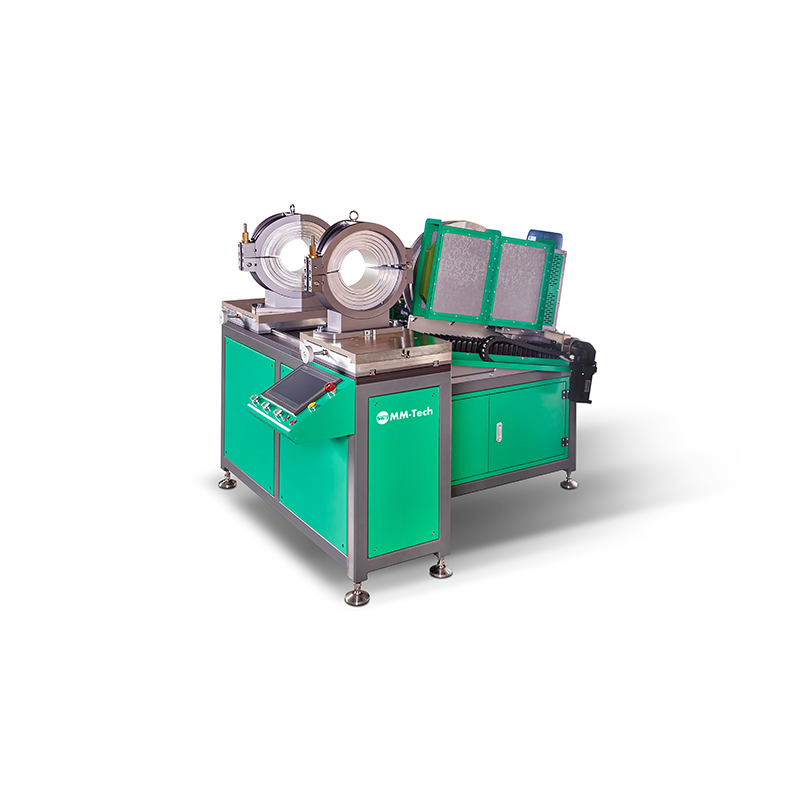

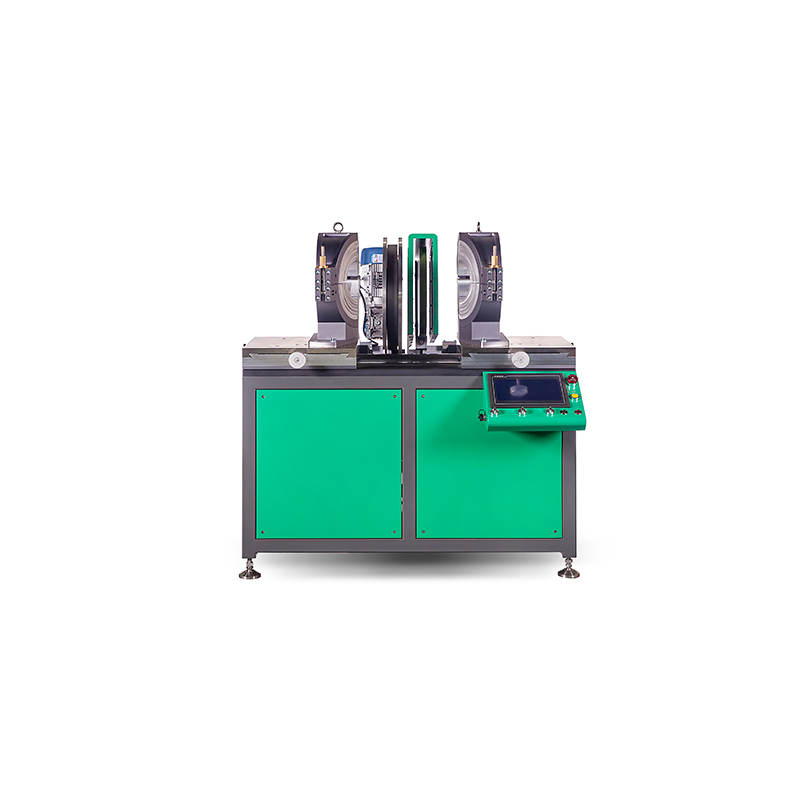

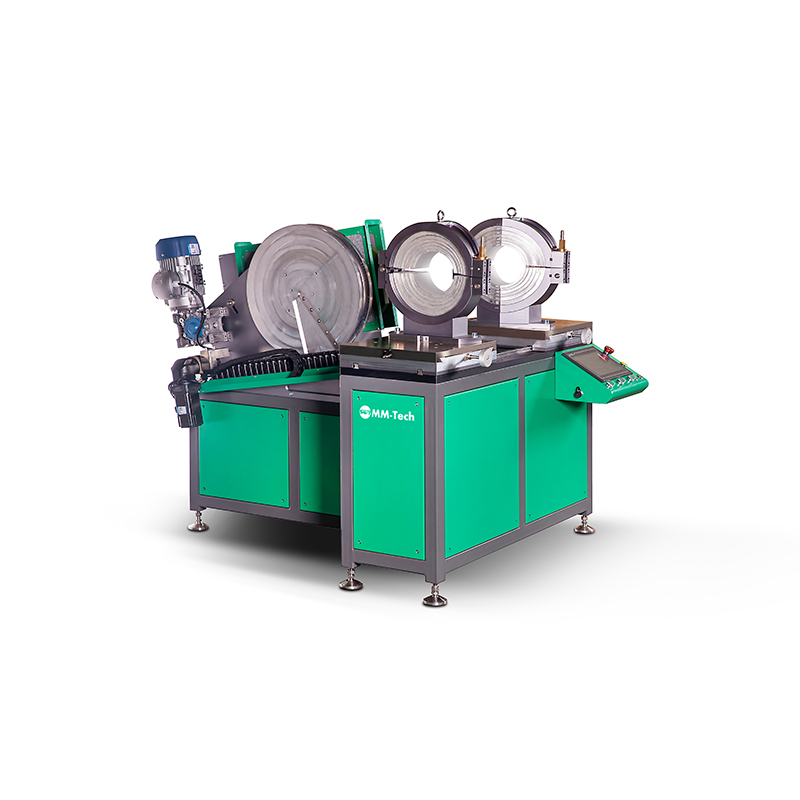

HDPE Fitting Fabrication Welding Machine SWT-MA315 CNC 90-315MM(4″-12″IPS)
Fully automatic fitting fabrication welding machines are used for producing or manufacturing plastic pipe fittings.
Fitting Fabrication Welding Machine SWT-MA315 CNC Description
The SWT-MA315 CNC is MM-Tech’s flagship CNC-controlled HDPE fitting fabrication machine, optimized for precision and efficiency in manufacturing small-diameter thermoplastic fittings. It accommodates pipe sizes from 90mm to 315mm, making it well-suited for producing elbows, tees, crosses, and wyes using HDPE, PP, and PVDF materials.
Fitting Fabrication Welding Machines Data Sheet
| Technical Specifications | |
| Welding Range in mm | 90mm – 315mm |
| Welding Range in inch | 3″ IPS – 12″ IPS |
| Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
| Applicable Materials | HDPE, PP, PVDF |
| Control System | Automatic |
| Power Supply | 380V, 50Hz |
| Total Power Consumption | 10 KW |
| System Force | 900 N |
Get Free Quote of Fitting Fabrication Welding Machine
2-year quality warranty; technial support
Fitting Fabrication Welding Machine Video
PRODUCT FEATURES

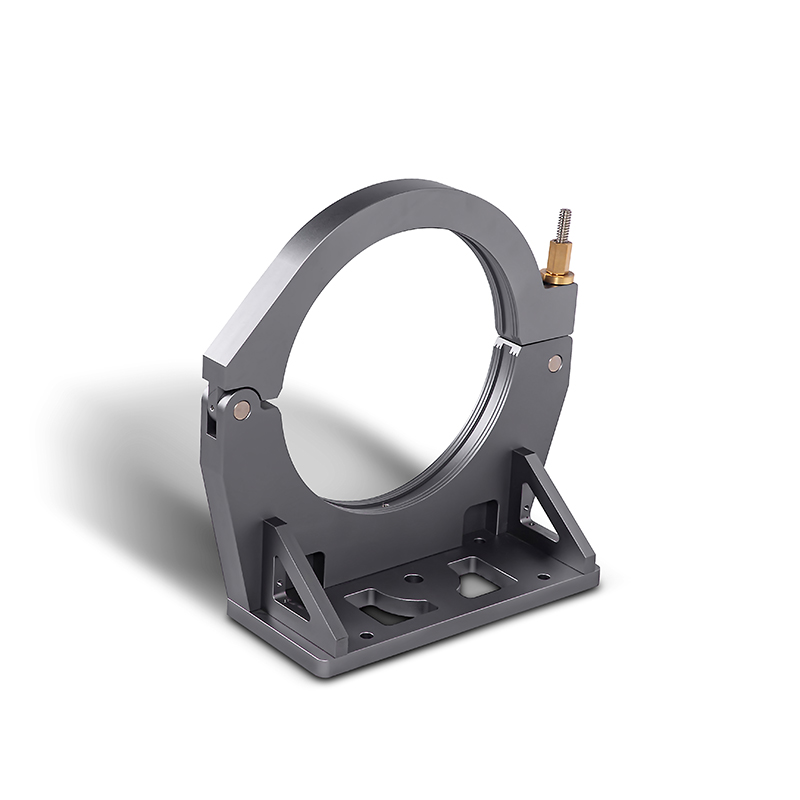

Innovation and precision have been significantly enhanced. All main clamps are crafted from die-cast aluminum and undergo precision machining on CNC centers, ensuring exceptional structural strength while achieving superior dimensional accuracy—directly elevating the precision of fitting fabrication during welding. The facer, heater, and carriage movements are driven by servo motors, enabling fast yet stable operation, with their positions meticulously tracked via encoders and a PLC program for consistent performance.

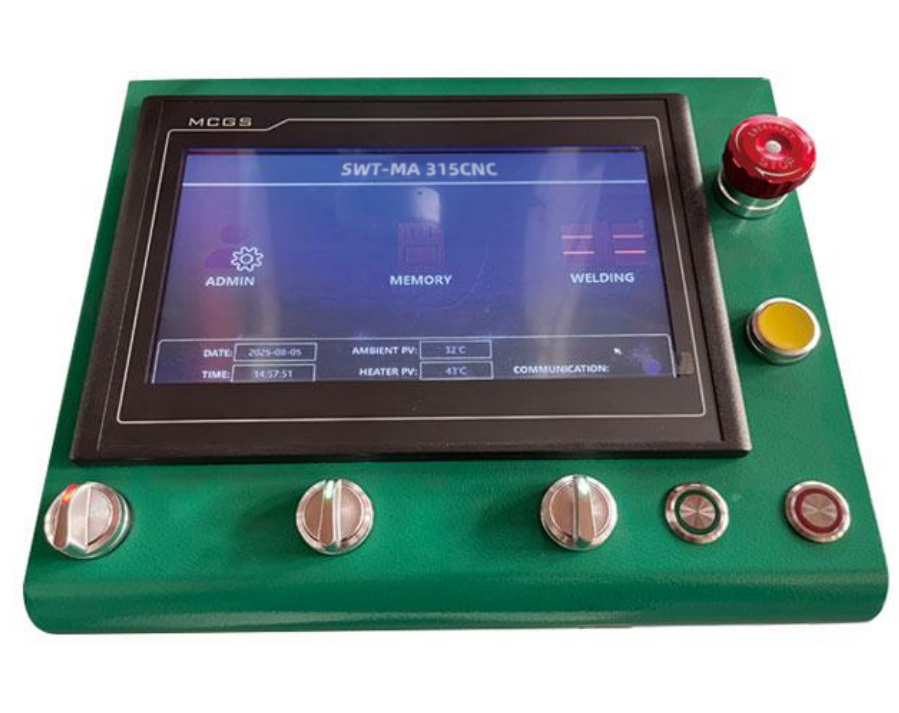

Featuring smart control and reliable traceability, the system integrates a 10-inch MCGS touch screen (1024×600 resolution) on its mobile console, with most functions displayed via intuitive icons for a clean, user-friendly interface. Its guided welding workflow minimizes operator intervention, reducing human error, while batch production efficiency is enhanced by reusable parameter settings that eliminate repetitive data entry. The system stores up to 10,000 welding records, with USB-enabled PDF export to ensure full traceability and compliance with project requirements. Complementing this, the SWT-MA315 CNC’s fully automatic CNC control panel streamlines operations: operators input SDR, pipe diameter, and welding standards, after which the system executes the process autonomously. Every welding cycle is logged in built-in memory, with data exportable via USB or printable directly. An integrated IoT module further enables remote diagnostics, software upgrades, and real-time technical support, solidifying its intelligent CNC control capabilities.
