HDPE Fitting Fabrication Welding Machines in Factory SWT-MA800 SWT-MA1000 SWT-MA1200 SWT-MA1600 CNC 500-1600mm(20″-63″IPS)

Fitting Fabrication welding machines are used for producing or manufacturing plastic pipe fittings

Hydraulic System
Automatic Welding Process
USB port
Oil Cylinder
Safety protection

HDPE Fitting Fabrication Welding Machines for Making Pipe Fittings

MM-Tech supplies the Pipe Fitting Welding Machine series, offering a complete range of models from 315mm to 1600mm to fulfill diverse pipe welding requirements. Engineered with a hydraulic system designed by the experts who formulated China’s heat fusion welding standards, this series features precise control, a dual hydraulic system, automatic butt welding processes, and a USB interface for easy data storage and software updates. Equipped with a color screen display, the machines ensure simple and safe operation, and are widely applied in the pipe welding and processing industry, catering to high-precision welding needs of customer groups like pipeline engineering companies, manufacturers, and suppliers.

Fitting Fabrication Welding Machines Data Sheet

Fitting Fabrication Welding Machines Specification
Model:
Operation: CNC (Automatic)
SWT-MA800 CNC SWT-MA1000 CNC SWT-MA1200 CNC SWT-MA1600 CNC
Welding Range: 500mm-800mm 630mm-1000mm 630mm-1200mm 1000mm-1600mm
Fabricatiing fittings : elbow 0-90°, tee and crosses elbow 0-90°, tee and crosses elbow 0-90°, tee and crosses elbow 0-90°, tee and crosses
Power Supply 380 V AC, 50/60 Hz 380 V AC, 50/60 Hz 380 V AC, 50/60 Hz 380 V AC, 50/60 Hz
Total Power: 54.5kw 71kw 71kw 71kw
Pressure range:  0-160bar  0-160bar  0-160bar  0-160bar

Get Free Quote of Fitting Fabrication Welding Equipment

2-year quality warranty; technial support

Products Categories
Get A Free Quote
Contact Form Demo (#3)

PE Fitting Fabrication Welding Equipment Video

Fitting Fabrication Welding Machines Workshop

Pipe Fitting Factory/Manufacturer

PRODUCT FEATURES

500-1600mm Fitting Fabrication Welding Machine (3)

Standard Composition

The standard configuration of this equipment is defined by the following components and features:

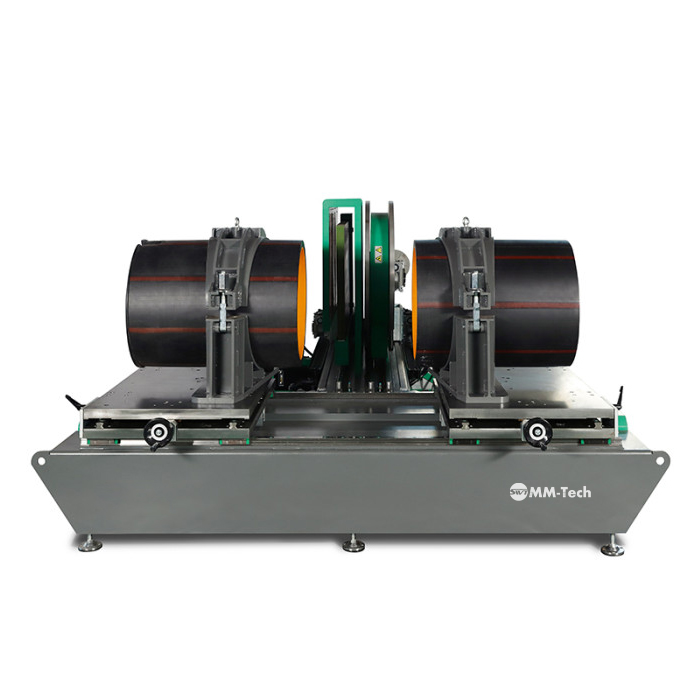

Machine Body with Working Tables

The machine body is equipped with two hydraulic-powered working tables, ensuring smooth and stable operation throughout the manufacturing process.

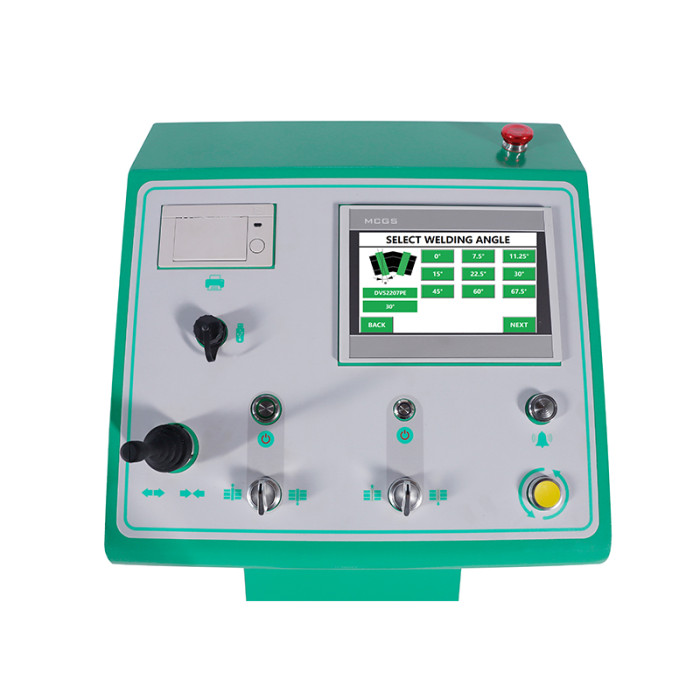

Automatic Control Operation Panel

Integrated with an automatic control system, the operation panel streamlines the welding process for enhanced efficiency and precision. After setting parameters like SDR, pipe diameter, and standard requirements, the welding machine initiates the process automatically—allowing operators to focus solely on the welding task. The built-in memory records the welding process, with data transferable to a computer via USB for reporting or printable directly through a connected printer.

Hydraulically-Moved Milling Cutter

A hydraulically actuated milling cutter, powered by an electric motor, enables controlled and effective milling operations.

Hydraulically-Moved Teflon-Coated Heating Plate

The heating plate, coated with non-stick Teflon, moves in and out hydraulically—ensuring precise positioning during the heating process.

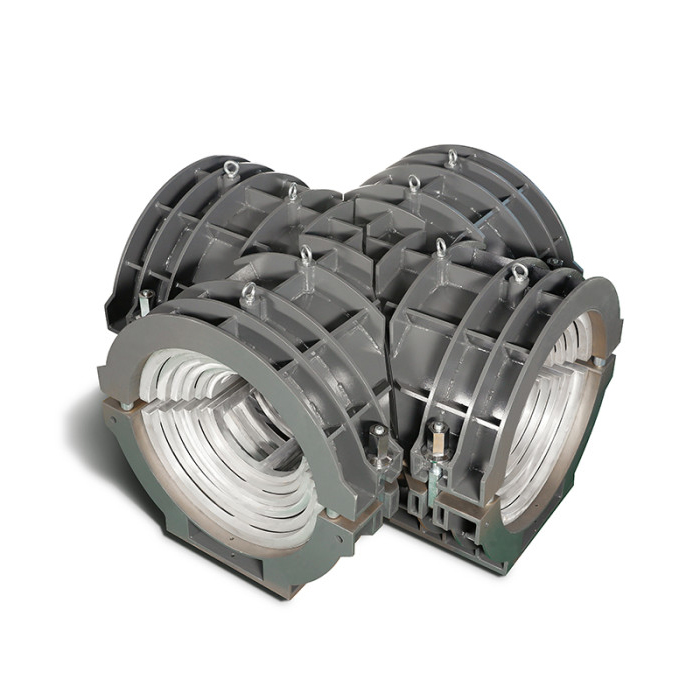

Complete Set of Fitting Components

Included are aluminum inserts and steel clamps for fabricating fittings (elbows, tees, crosses), meeting diverse connection and manufacturing requirements.

PACKING

Whether it’s one or a batch of machines, MM-Tech ensures prompt and secure delivery, with equipment arriving intact.

Our services

Warranty Service

We provide two-year warranty service .Let you have worry-free after-sales service.

Pre-After Service

We offer comprehensive support, from expert guidance before purchase to personalized one-on-one service after purchase, ensuring you receive top-tier service throughout.

Professional service team

Our professional team is dedicated to providing premium service to meet your needs. We offer training and provide on-site solutions as needed to respond quickly to your requirements.
