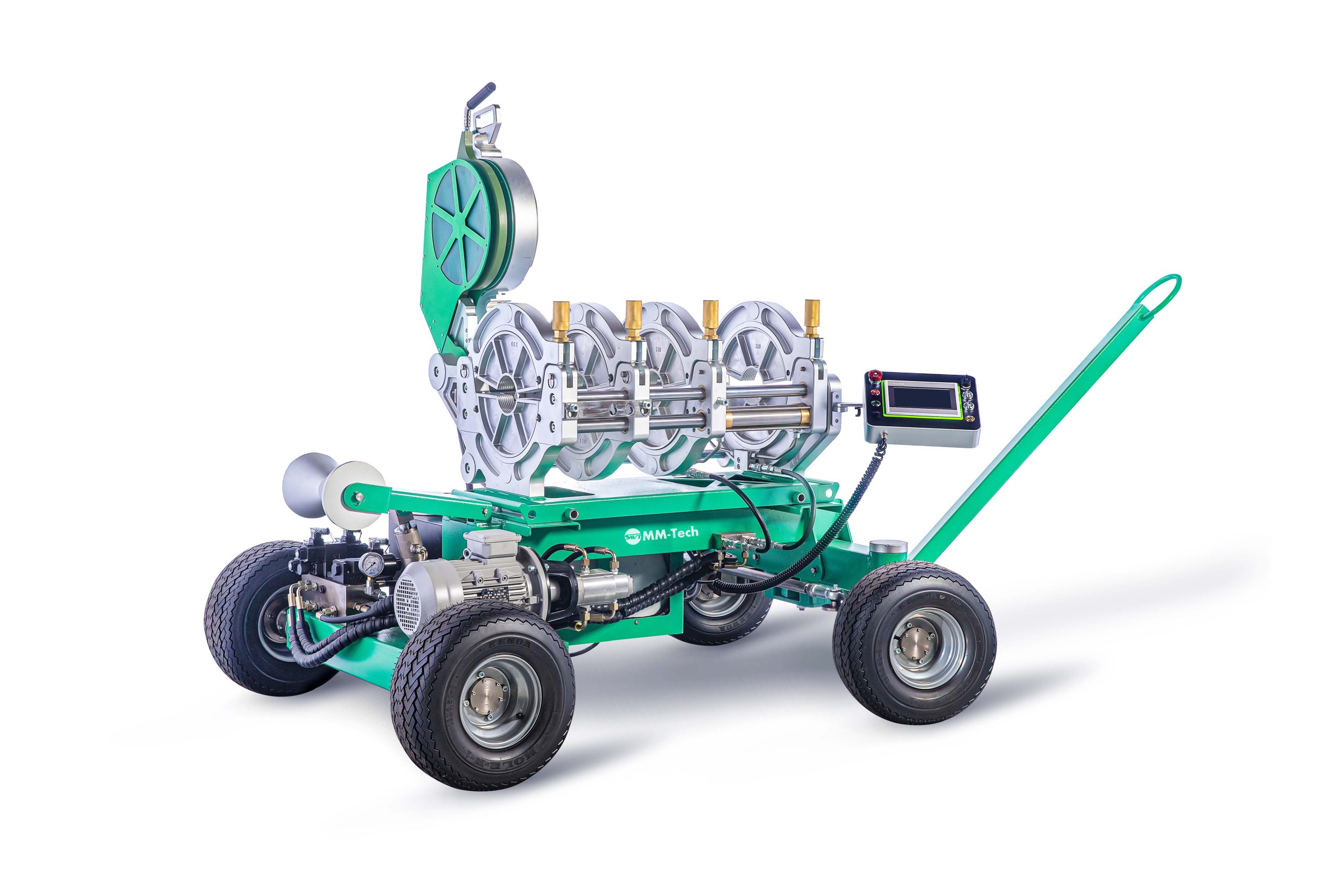

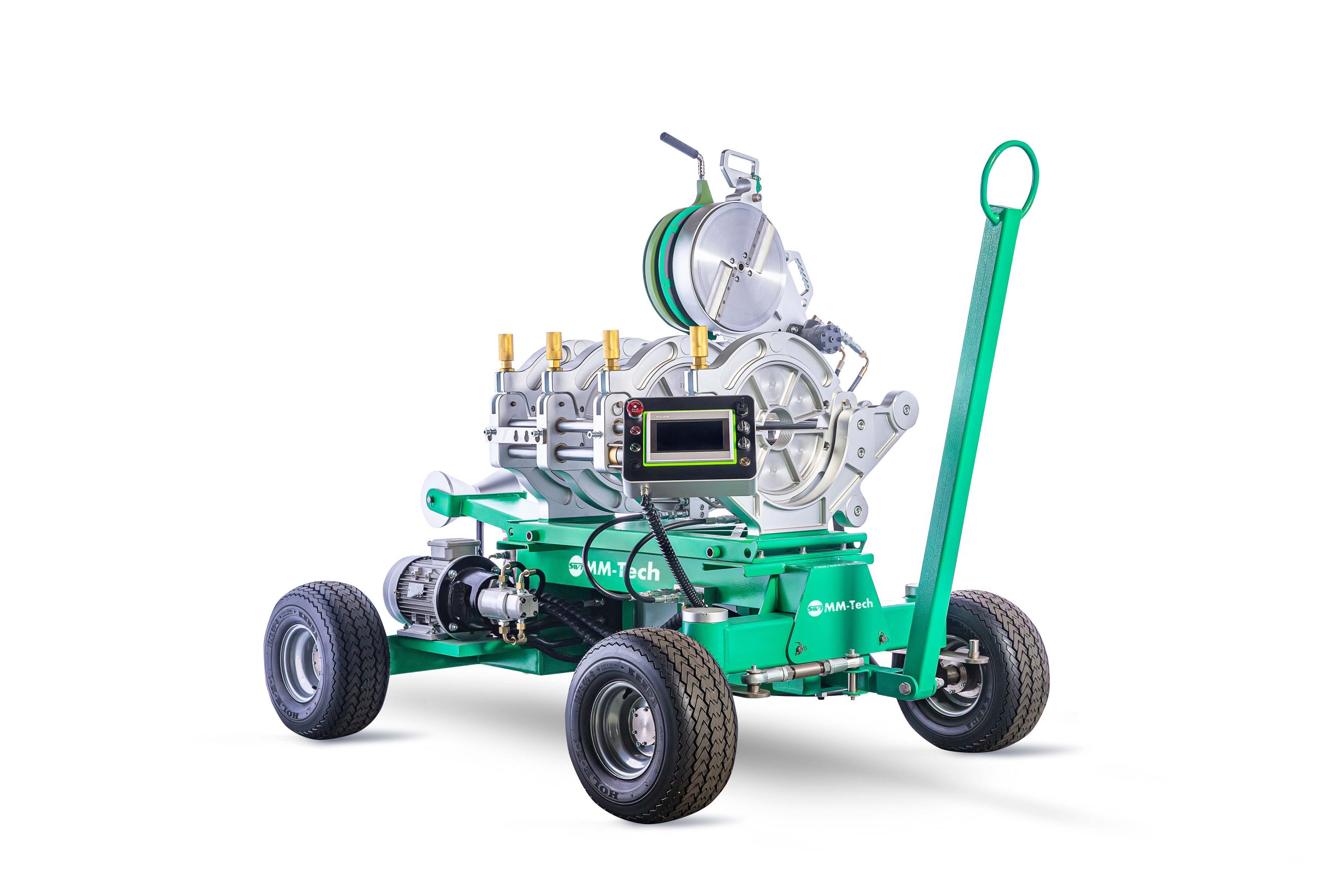

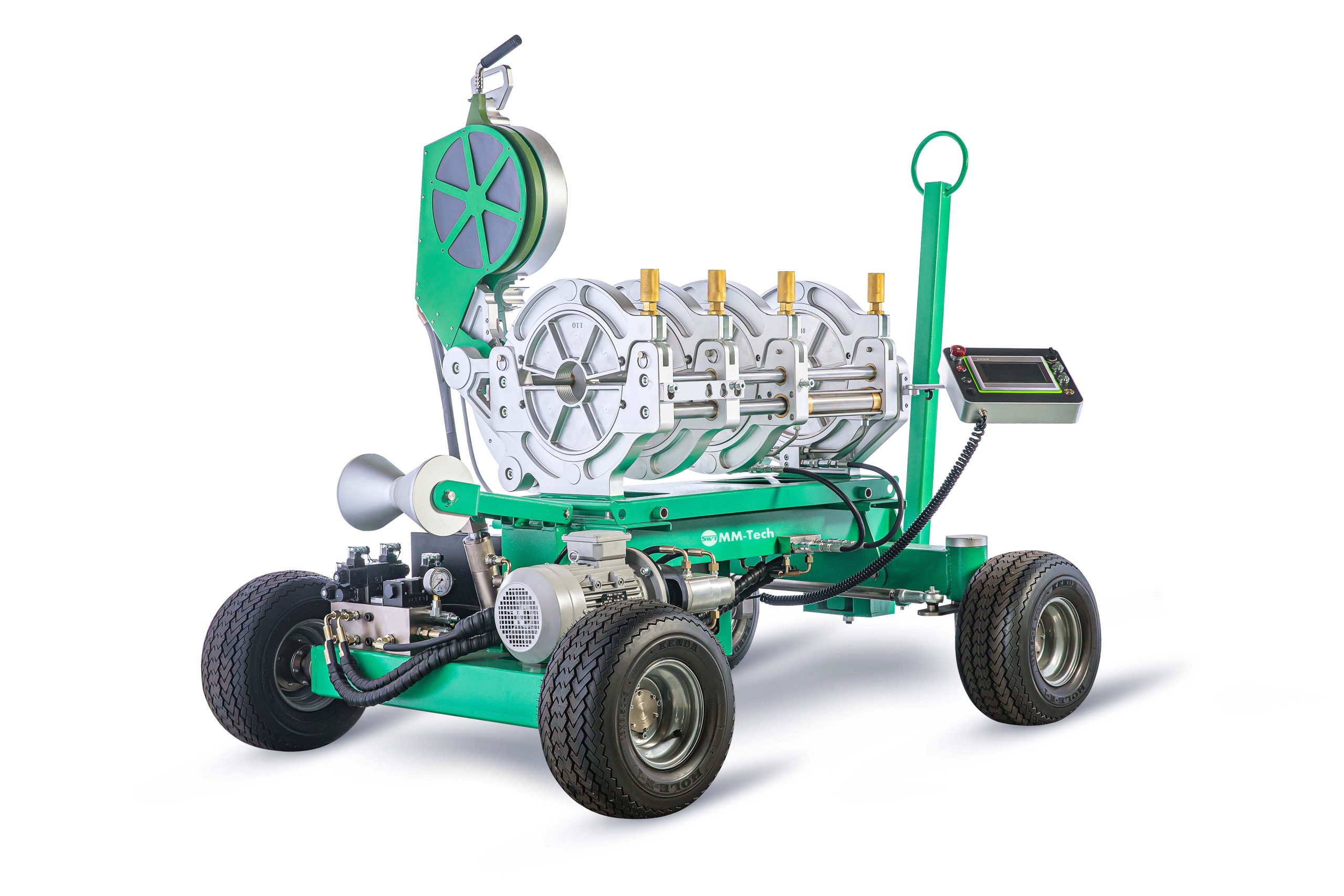

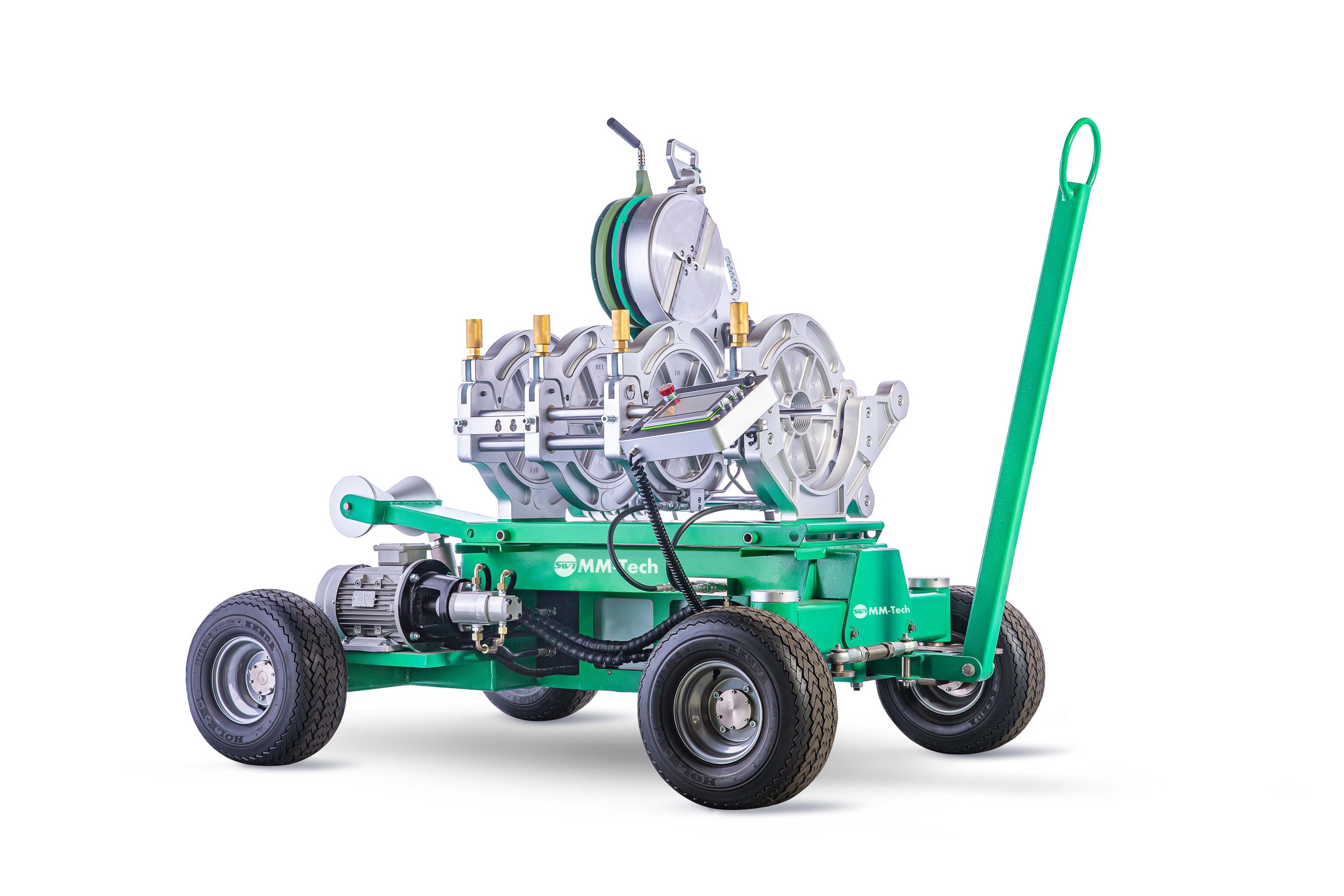

Mazinger 355i Trailer Butt Fusion Welding Machines 110-355mm(4″-14″IPS) for Construction Site
Trailer Pipe Thermofusion Welding Equipment Water System MM-Tech Professional Supplier
- The dual-axis structural frame ensures strength and even distribution of welding force
- On-board heating plate with protection frame and insulated shield
- On-board high-capacity trimmer driven by hydraulic power
- Removable machine chassis for in-ditch use
- Dragging bar designed to weld between the 3rd and 4th clamp
Trailer Butt Fusion Welding Machine Automatic PE Pipe Hot Melt Welders
We supply premium trailer butt fusion welding machines, adhering to ISO21307 and ASTM F2620 standards for high-force welding. The Mazinger Series Trailer Butt Fusion Welding Machines features a fully automated SIEMENS PLC system, ensuring precision and reliability. Crafted with durable aluminum components, it includes a dual-axis structural frame, on-board heating plate, hydraulic trimmer, and removable chassis for in-ditch use. Ideal for PE and HDPE pipe welding, it suits industries like gas, water supply, and infrastructure. With data-logging for up to 30,000 reports and USB compatibility, it’s perfect for manufacturers, wholesalers, and distributors
Trailer Butt Fusion Welding Machines Technical
| Trailer butt fusion welding machine specification | ||
| Model | Mazinger 355/355i | Mazinger 630/630i |
| Welding Range O.D (mm) |
110-355 | 315-630 |
| Reducer Inserts | 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 | 315,355,400,450,500,630 |
| Power Supply | Automatic,High Force,220/380V, 50/60Hz, 3 Phase | Automatic,High Force,220/380V, 50/60Hz, 3 Phase |
| Heater Power (kw) | 4.00 | 9.3 |
| Trimmer | Hydraulic | Hydraulic |
| Working Pressure Range | 0-110Bar | 0-160Bar |
| Overall G.W. (kg) | 750.0 | 750.0 |
Get Free Quote of Trailer Butt Fusion Welders
MM-Tech is dedicated to supporting you with thermofusion welding machines and project solutions.

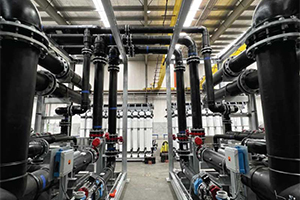

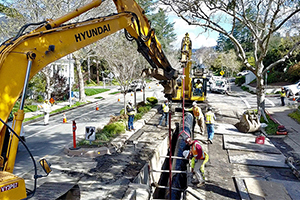

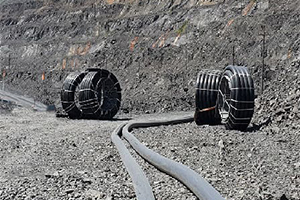

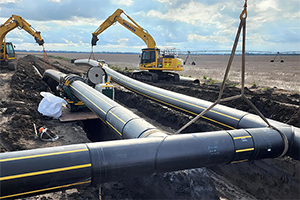

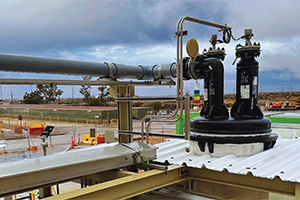

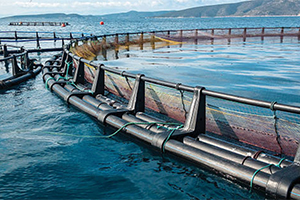

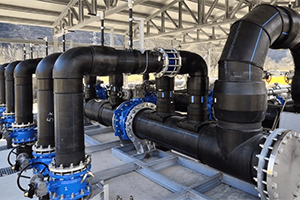

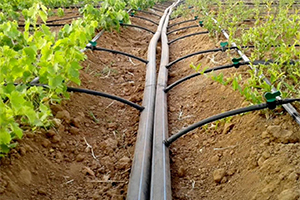

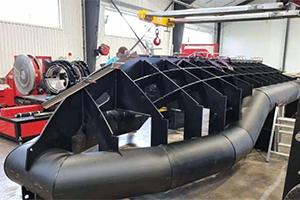

Trailer Butt Fusion Welding Machine Applications
The MM – Tech Mazinger Series stands out as a high – quality fusion welding machine. Its trailer – mounted design ensures excellent mobility, making it a perfect fit for construction sites. Weld HDPE, PP and PVDF pipes accurately and efficiently.
WELDED THERMOPLASTIC TUBE TYPE
MM-Tech Mazinger series trailer butt fusion welding machines features extensive material compatibility, efficiently welding various plastic pipes such as HDPE, PE, PP, and PVDF. These materials are widely recognized for their superior physical properties and chemical stability, making them ideal for diverse industrial applications.
Welding Effects Display
Our machine welds HDPE pipes to perfection, creating joints of exceptional strength. Leveraging state – of – the – art inspection tools and adhering to strict quality control protocols, we guarantee that each weld meets the loftiest industry standards. Our dedication to quality ensures the long – term safety, durability, and outstanding performance of your pipe systems.
PRODUCT FEATURES
This advanced welding machine is equipped with a dual – axis structural frame for robust strength and even welding force distribution. It comes with an on – board heating plate protected by a frame and insulated shield, and a powerful hydraulically – driven trimmer. Its removable chassis enables in – ditch operations, while the detachable trimmer simplifies short spigot welding. The quick – release insert system, combined with strong jaws, secures pipes during fusion. Hydraulic pipe lift and rugged outriggers ensure efficient pipe handling and stability. Hydraulic clamping is used for secure fastening. It’s compatible with a manual – version data logger (PEWELDBANK). The welding process is operator – friendly, requiring just a button press. The removable control panel offers extensive data – logging (up to 30000 reports) and has a USB port for data download and firmware updates.
