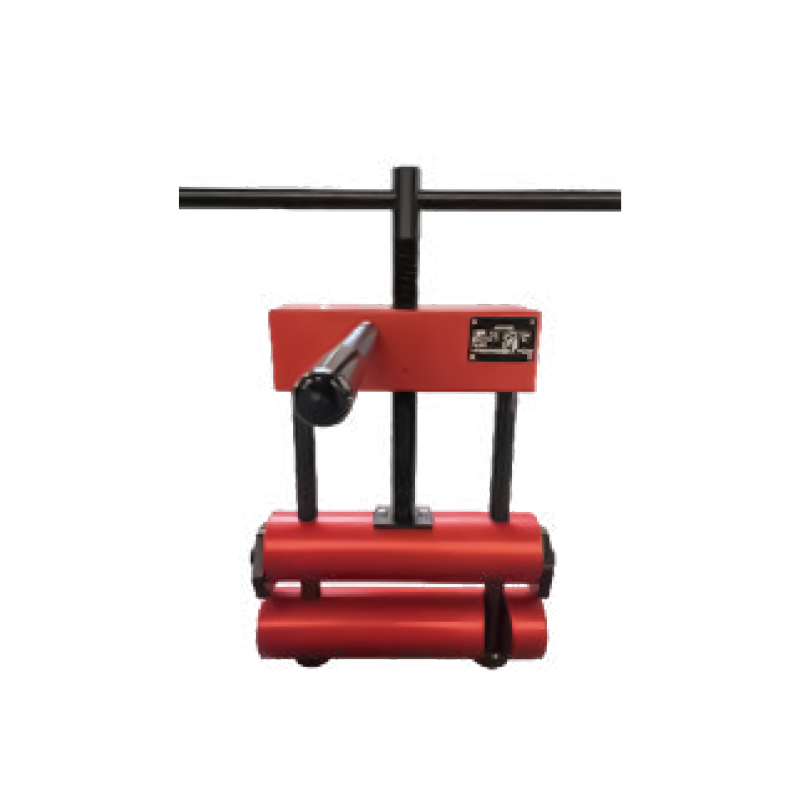

PE Pipe Squeeze Off Tool
This series of PE pipe squeezer tools (including models such as TPES6H, TPES8H, and TPES12H) combines excellent design with practical performance. The optimized dual-rod design enables precise flow control management, while the swingable bottom bar paired with a machined hand rest area allows for easy lifting and quick fitting onto pipes in service during on-site operations. It is equipped with limit stops and brake pads, and the stop positions marked with different colors effectively prevent pipe damage caused by over-clamping.
PE Pipe Squeeze Off Tool Description
The base of the PE pipe squeezer can be opened to clamp any part of the pipe. The movable handle is convenient for operation in a small space. The precision thread makes the tightening process easy. The lubrication device ensures smooth operation and extends the life of the tool. The squeezer is equipped with a brake device to prevent excessive squeezing of the pipe. The 2-inch and 4-inch squeezers are manual, and the 6-inch, 8 -inch and 12-inch squeezers are hydraulic, including a hydraulic pump, a pressure gauge, and a clamp.
PE Pipe Squeeze Off Tool Technical
| Item | Model | Working Range | Brake Pads | Length | Weight | |||
| inch | mm | qty | inch | mm | lb | kg | ||
| PE PIPE SQUE EZER |
TPES2 | 1/2-2 | 1-50 | 2 | 12 | 305 | 11.6 | 5.3 |
| TPES4 | 2-4 | 63-110 | 4 | 20 | 508 | 38.6 | 17.5 | |
| TPES6H | 3-6 | 89-168 | 10 | 25 | 635 | 200 | 35.0 | |
| TPES8H | 3-8 | 89-219 | 12 | 28 | 711 | 233 | 105.7 | |
| TPES12H | 8-12 | 200-315 | 12 | 30 | 762 | 395 | 179.2 | |
Get Free Quote of PE Pipe Squeeze Off Tool
