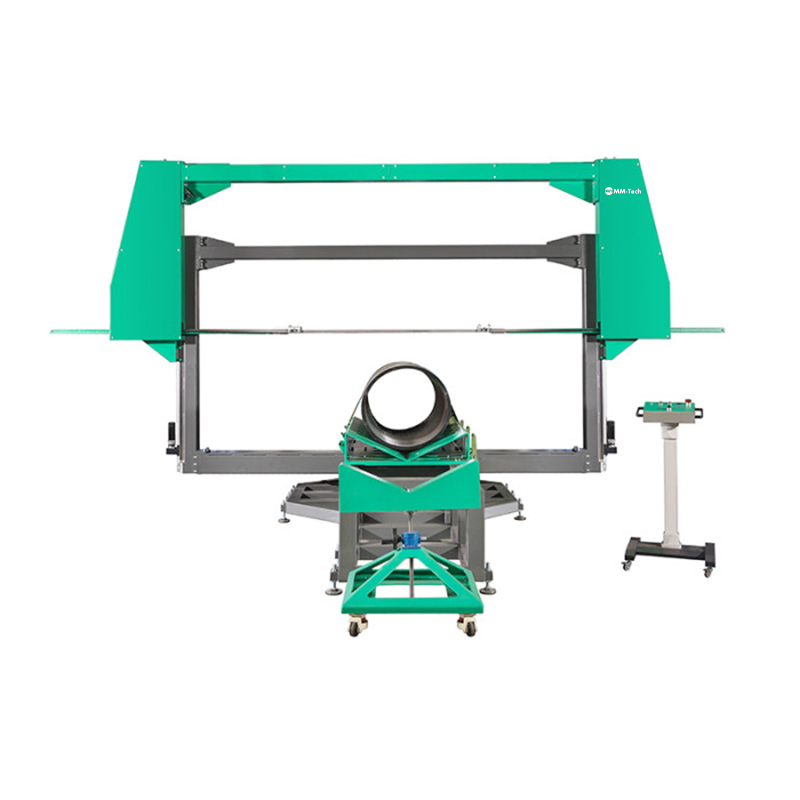

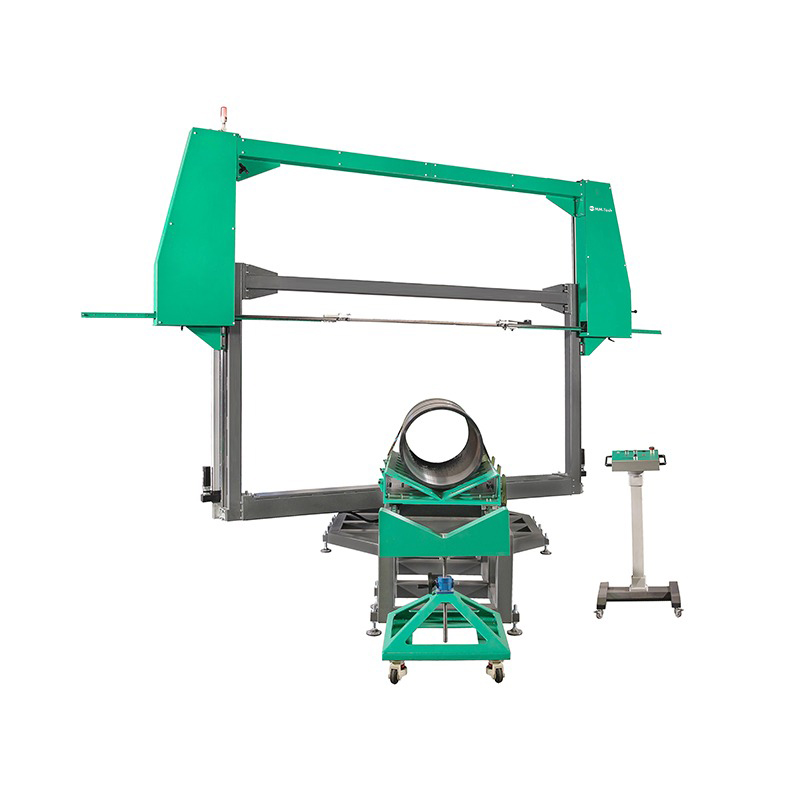

Pipe Band Saw SWT-C1000 SWT-C1200 315 -1200MM (12″ IPS – 48″ IPS)
Pipe band saws <1200mm Multi angular Pipe Cutting Equipment
Positive and negative cutting angle 67.5 ° to -67.5 °, easier to cut wyes type pipe fittings.
The use of electric cylinder cutting more consistent, hydraulic is less stable
Pipe Band Saw Description
We supply high-quality multiangular band saws designed for precise and versatile cutting. With a cutting angle range of 67.5° to -67.5°, they are ideal for creating wye pipe fittings with ease. Featuring an electric cylinder system, these band saws provide more consistent cuts compared to hydraulic systems, ensuring stability and accuracy. Perfect for pipe manufacturers, distributors, and traders in industries like plumbing, gas, and water supply. Durable, efficient, and reliable, they meet the demands of bulk orders and industrial applications
Pipe Band Saw Data Sheet
| Model | SWT-C1000 | SWT-C1200 |
| Cutting Range | OD 315 mm – 1000 mm | OD 315 mm – 1200 mm |
| Power Supply | 380 V, 3 P, 50/60 hz | 380V, 3P, 50/60 hz |
| Rated Power | 3.7 kw | 3.7 kw |
| Line Speed | 0 – 255 m/min | 0 – 255 m/min |
| Footprint | 450 cm * 500 cm | 450 cm * 500 cm |
| Max. Cutting Angle | 67.5º | 67.5º |
| Materials | HDPE, PP, PVDF, PPR, PVC | HDPE, PP, PVDF, PPR, PVC |
| Cutting Angle Error | ≤ 1° | ≤ 1° |
| Feeding Speed | Adjustable | Adjustable |
| Net Weight | 1600 kg | 1600 kg |
Get Free Quote of Pipe Band Saws
2-year quality warranty; technial support
Pipe Band Saw Applications
Cutting pipes in different angles, HDPE Boat Construction
Standard Composition
- Pipe supporting bed
- Straps used to clamp the main pipes
- Control panel with emergency stop
- Laser cut detection
- Special saw blade available for thick-walled pipe
- Pipe support
PRODUCT FEATURES
No Hydraulic Oil
This equipment relies solely on electric cylinder actuation, doing away with hydraulic cylinders entirely. It eliminates risks of oil seepage and the necessity for hydraulic oil replenishment, resulting in more hygienic operation, lower upkeep costs, and optimized energy performance.

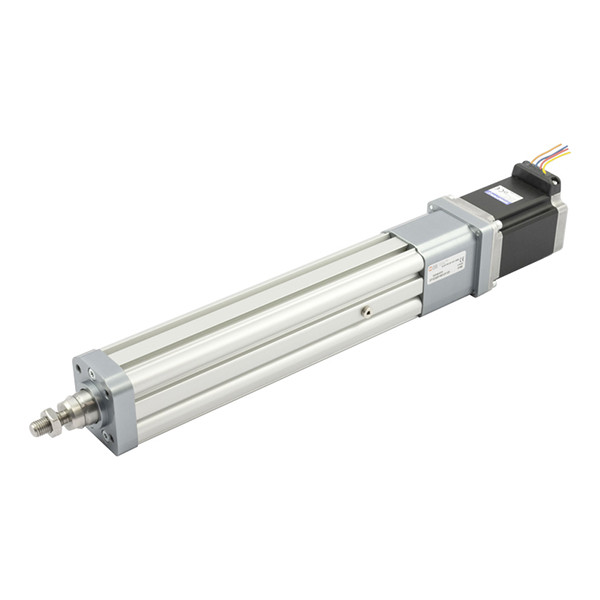

Electric Cylinder
The electric cylinder supports rapid, smooth movement of the saw carriage, significantly elevating travel velocity and synchronous accuracy while reducing operational noise levels, thereby enhancing the overall efficiency of the equipment and creating a more ergonomic work setting.

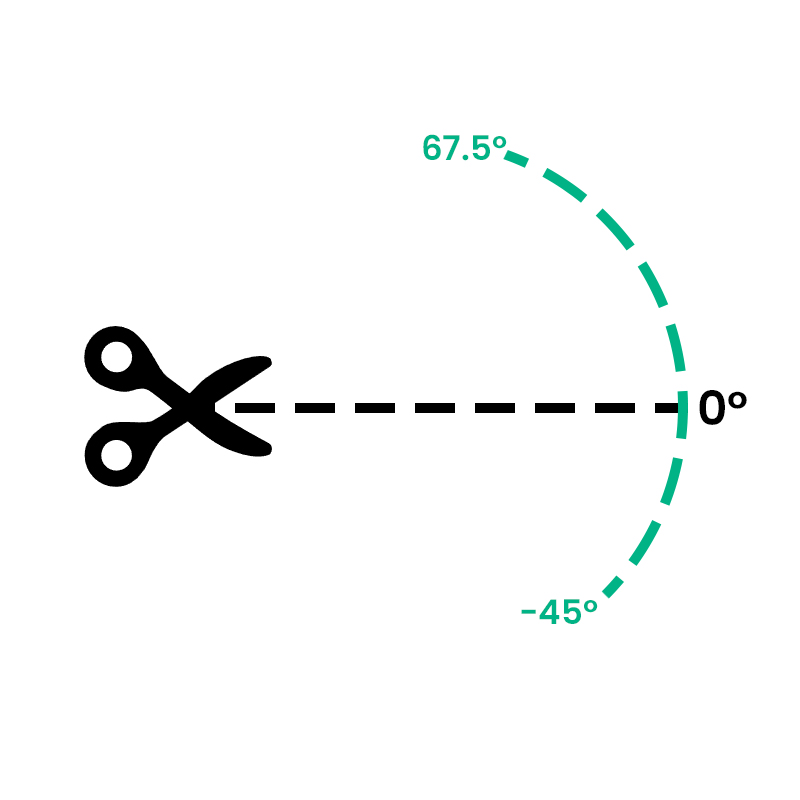

– 45° – 67.5°
Engineered for optimal efficiency and precision, this HDPE pipe cutting saw facilitates angle cutting ranging from -45° to 67.5° merely by rotating the saw blade housing — no pipe repositioning required. This substantially improves cutting productivity, particularly during the fabrication of fittings such as WYE connectors, rendering the operation faster, more straightforward, and less labor-intensive.
