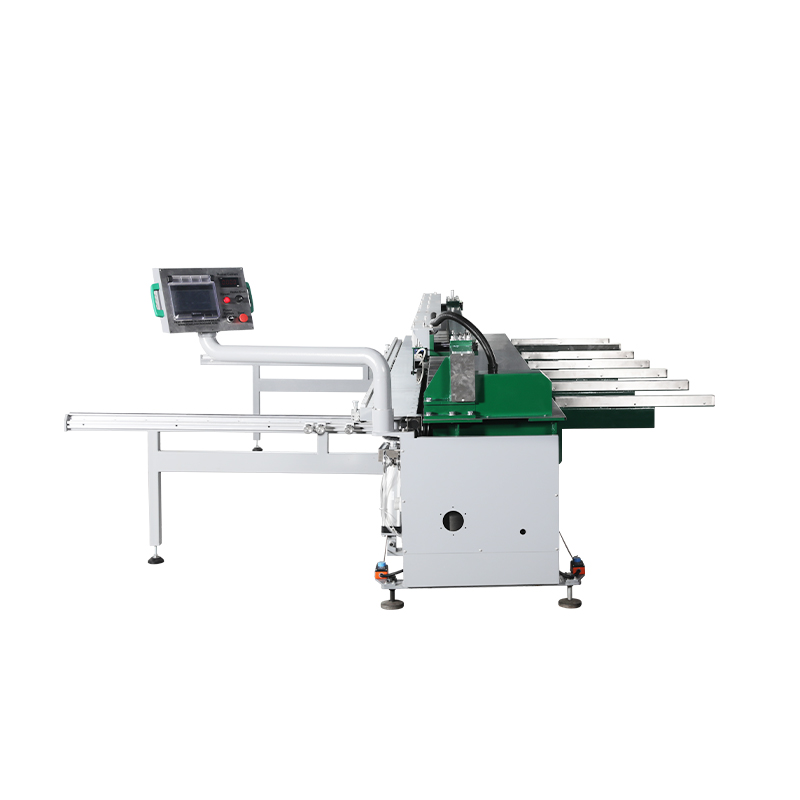

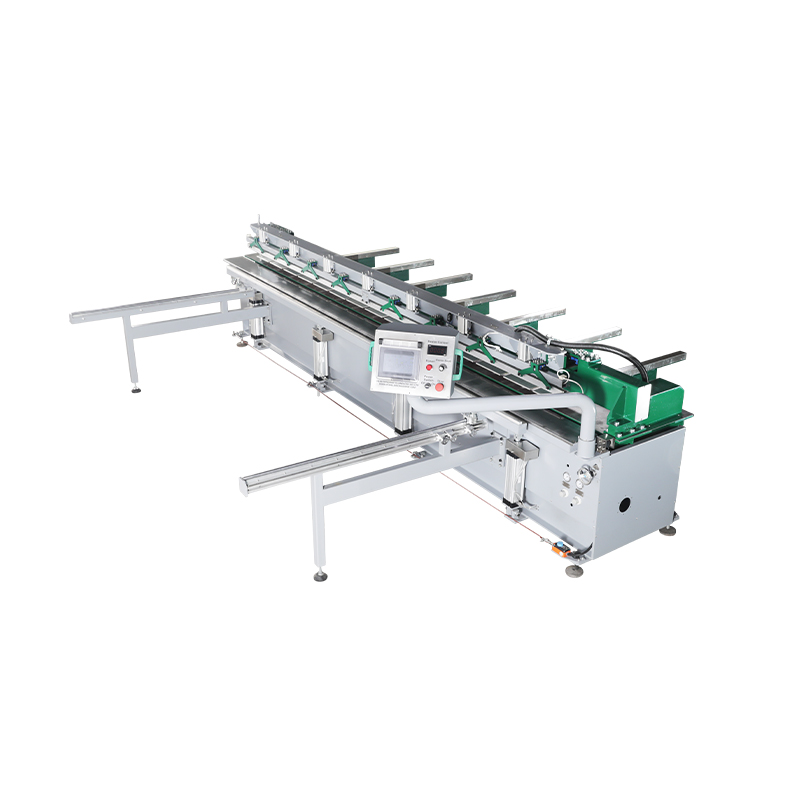

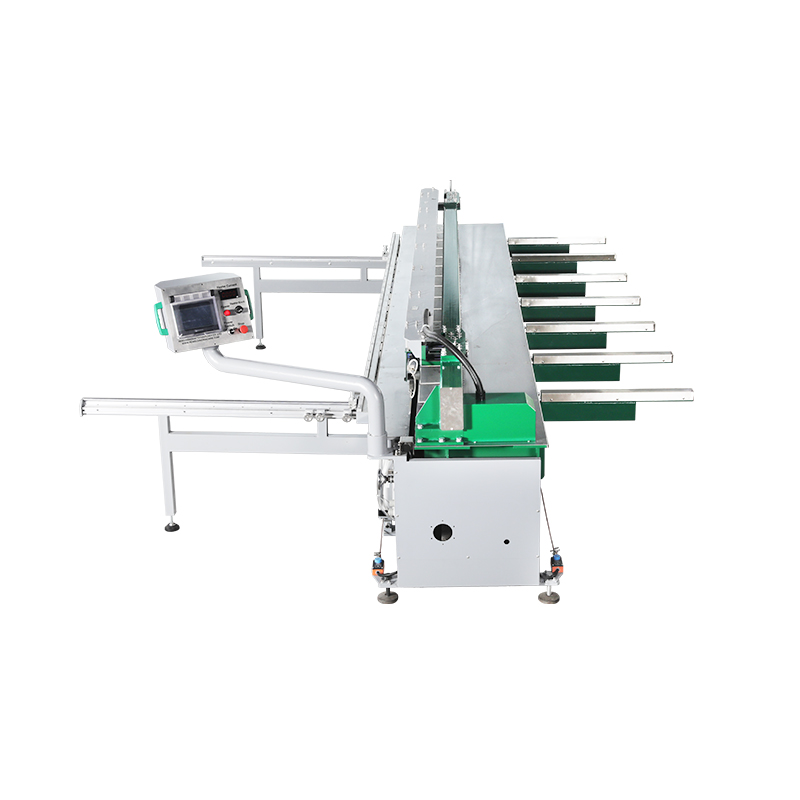

Plastic Sheet Bending Machine SWT-ZW6000
This plastic sheet bending machine is suitable for bending thermoplastic sheets made of
PE, PP, PVC, PVDF, PC, ABS, Acrylic.
Plastic Sheet Bending Machine SWT-ZW6000 Description
The MM-Tech SWT-ZW6000 stands as the flagship ultra-large model of the series, engineered for bending ultra-wide thermoplastic sheets—supporting a maximum width of 6000mm and a thickness range of 3–25mm. Standout features encompass a rear discharge design, precise ±5°C temperature control, angle adjustability up to 95°, and an optional cooling system. It is ideal for heavy-duty forming applications in industrial tank and container manufacturing.
Plastic Sheet Bending Machine SWT-ZW6000 Technical
| Bending Length | 6000mm |
| Bending Thickness | 3-25mm |
| Weldable Materials | PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets |
| Power Consumption (KW) | 14kw |
| Bending Angle | 0-95°Adjustable |
| Timing | Yes |
| Alarming | Buzzing |
| Sheet Locking Clamps | Pneumatic |
| Welding System | CNC |
| Power Supply | AC 380V 3P 50/60HZ |
| Compressed Air Connection (bar) | 6-8 kg/cm² |
| Display | 10 inch WEINVIEW |
| Hardware Control Panel | SIEMENS / MITSUBISHI PLC |
| Full load Current (A) | 36A |
| Upper Heating Plate Power | 2P, 7.0kW |
| Lower Heating Plate Power | 2P, 7.0kW |
| Power Cable Size | 4*6mm² |
Get Free Quote of Plastic Sheet Bending Machine
MM-Tech is dedicated to supporting you with thermofusion welding machines and project solutions.
Plastic Sheet Bending Machine Video

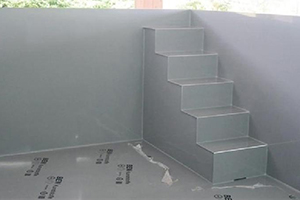

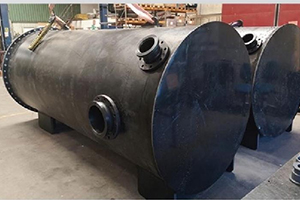

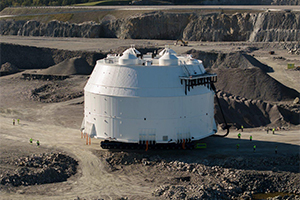

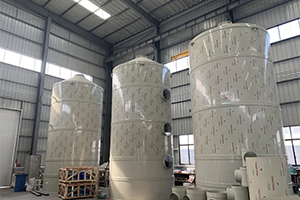

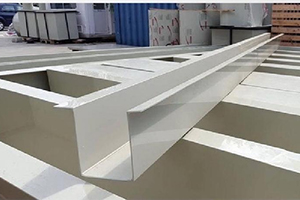

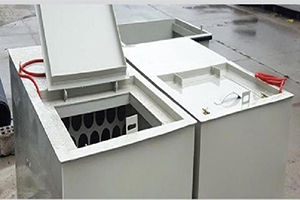

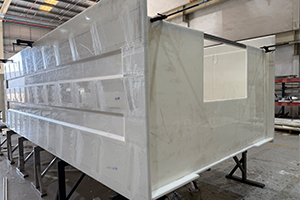

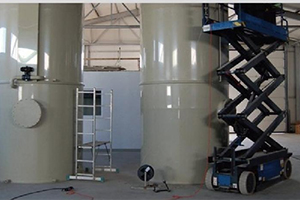

Plastic Sheet Bending Machine Applications
PRODUCT FEATURES
Compliant with the welding standard DVS2207
Automatic welding system
Hinge connection welding more accurately
Pneumatic Locking Clamps
Dual digital display thermostat
The equipment used the best components of Festo, Siemens, and Schneider Electric
Multi-point control clamp lifting
Heating Plate Teflon was Coated by Dupont
Optional rocker arm device column device

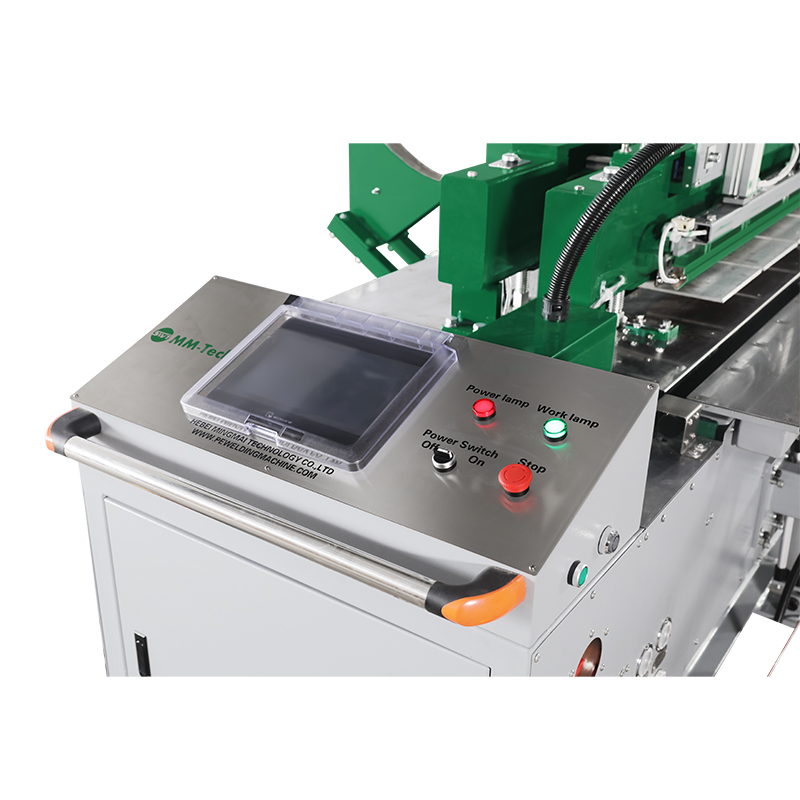

Siemens Mitsubishi PLC with 10-inch touch screen
Bending thickness range 2-15 mm
3D Rendering of the Functions of The Plastic Sheet Bending Machine
Basic Functions

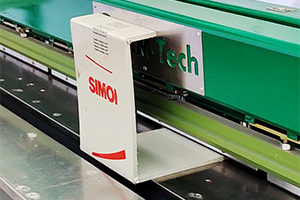

0-95 Bending by one sheet
Optional Accessories
Optional:Heating Knife for Station 2/3/4
