Plastic Sheet Welding & Bending Machine SWT-PZ1500

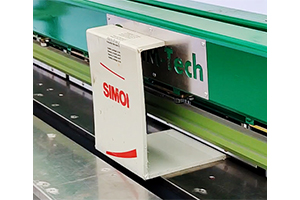

This plastic sheet welding bending machine is suitable for welding thermoplastic sheets made of PE, PP, PVC, PVDF, PC, ABS, Acrylic.It could not only support horizontal circular welding of the sheets,but also support 0 to 95 bending by one sheet.
Plastic Sheet Welding & Bending Machine SWT-PZ1500 Description
The MM-Tech SWT-PZ1500 is engineered for high-precision, efficient processing of thermoplastic sheets with a maximum width of 1500 mm. Integrating flat welding, 5°–95° bending, and roll bending into a single all-in-one unit, it excels at producing tanks, ducts, and structural components in space-constrained environments. Fitted with a Mitsubishi PLC and digital temperature regulation, this machine delivers seamless operation and reliable, uniform results specifically for PP, PE, and PVDF materials.
Plastic Sheet Welding & Bending Machine SWT-PZ1500 Technical
| Weldable Materials | PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets |
| Max.Working Length(mm) | 1500mm |
| Weldable thickness(mm) | 2-15mm |
| Bending thickness | 2-15mm |
| Min.cylinder diameter(mm) | 280mm |
| Pressure setting method | Digital |
| Pressure Controller | SMC electric proportional valve |
| Power consumption(kW) | 8kw |
| Power supply | AC 380V 1P 50/60Hz |
| Compressed air connection (bar) | 6-8 kg/cm² |
| Motor of cylinder | 2.2kw |
| Sheet Locking Clamps | Pneumatic |
| Welding System | CNC |
| Display | 10 inch WEINVIEW |
| Hardware Control Panel | SIEMENS / MITSUBISHI PLC |
| Full load Current(A) | 14A |
| Power Cable Size | 4*2.5mm² |
Get Free Quote of Plastic Sheet Welding & Bending Machine
MM-Tech is dedicated to supporting you with thermofusion welding machines and project solutions.
Plastic Sheet Welding & Bending Machine Video
Plastic Sheet Welding & Bending Machine Applications
PRODUCT FEATURES
Compliant with the welding standard DVS2207
Automatic welding system
Hinge connection welding more accurately
Wireless remote control for belt ‘s motor
Full automatic clamp for rolling
Pneumatic Locking Clamps
Dual digital display thermostat
The equipment used the best components of Festo, Siemens, and Schneider Electric
High-precision positioning of the sheet, stable and repeatable heating, leveling, and welding straight line
Multi-point control clamp lifting
Heating Plate Teflon was Coated by Dupont
Optional rocker arm device column device
Siemens Mitsubishi PLC with 10-inch touch screen
Weldable thickness 2-15mm

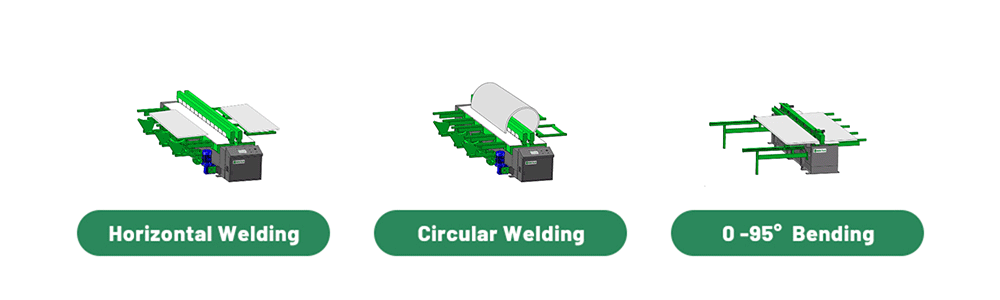

3D Rendering of the Functions of The Plastic Sheet Welding & Bending Machine
