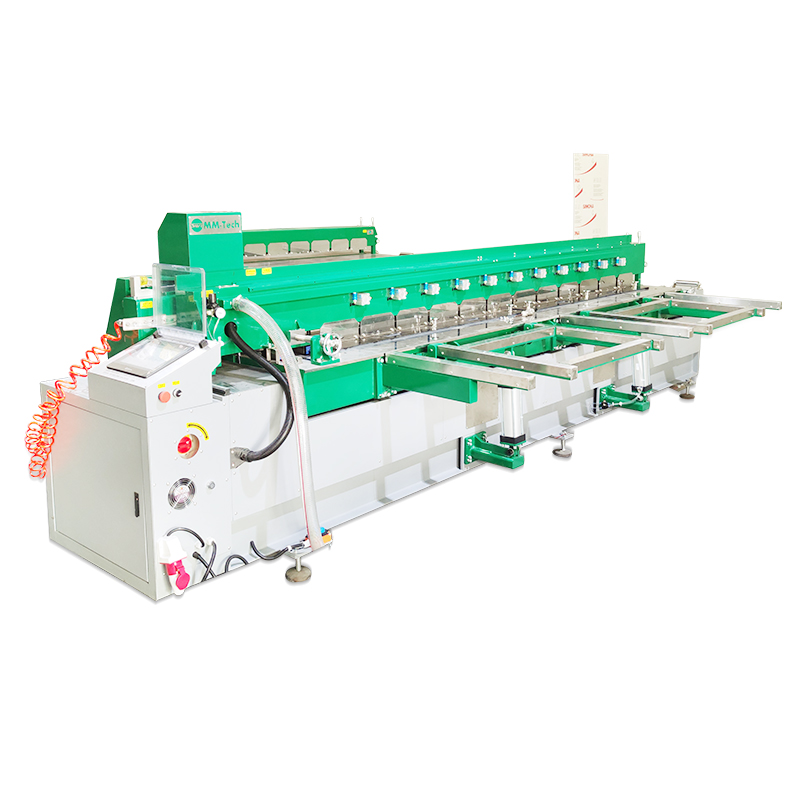

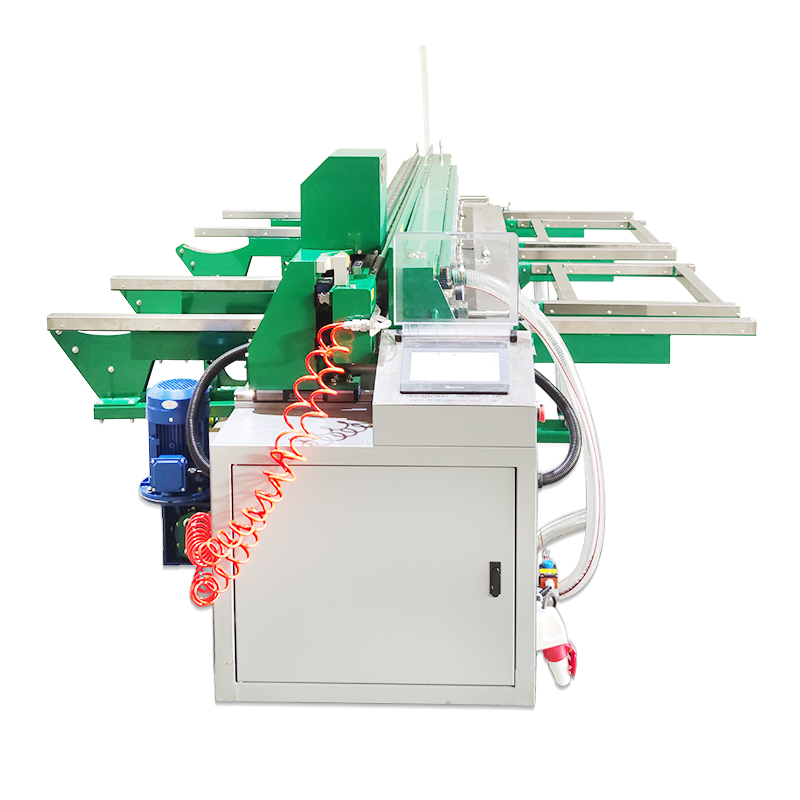

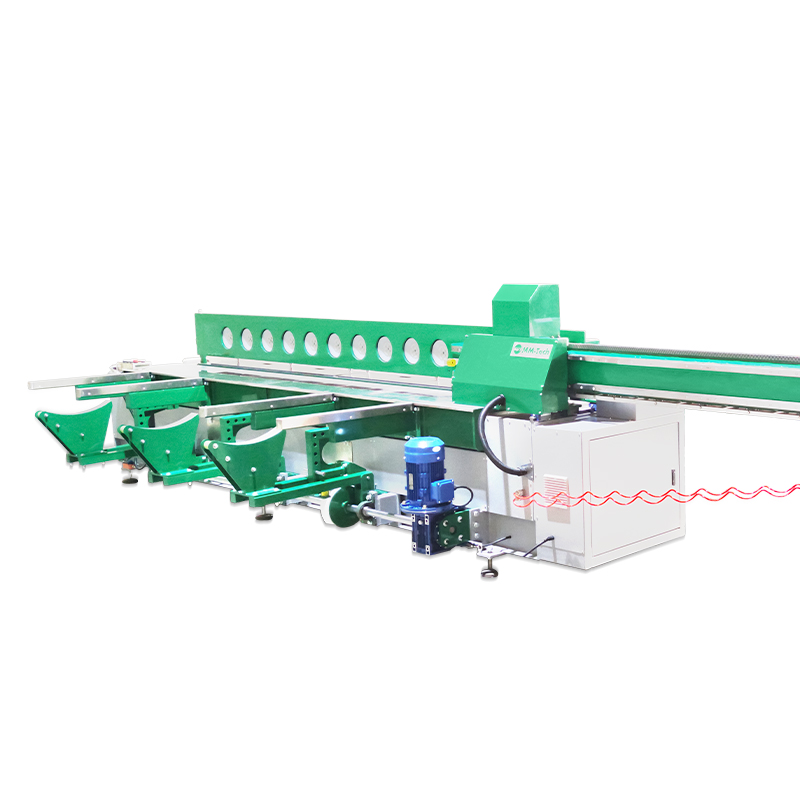

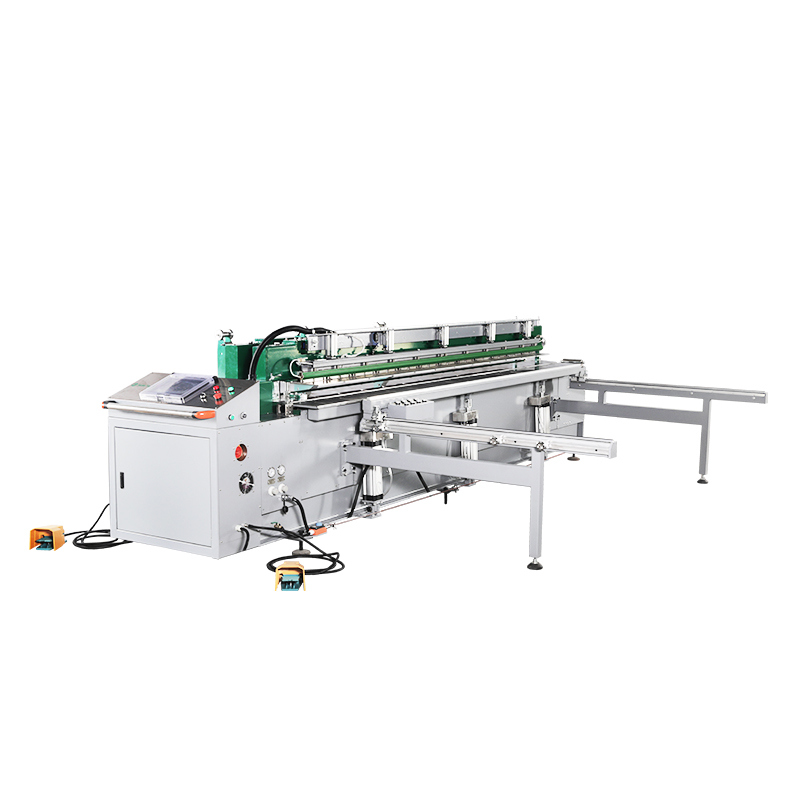

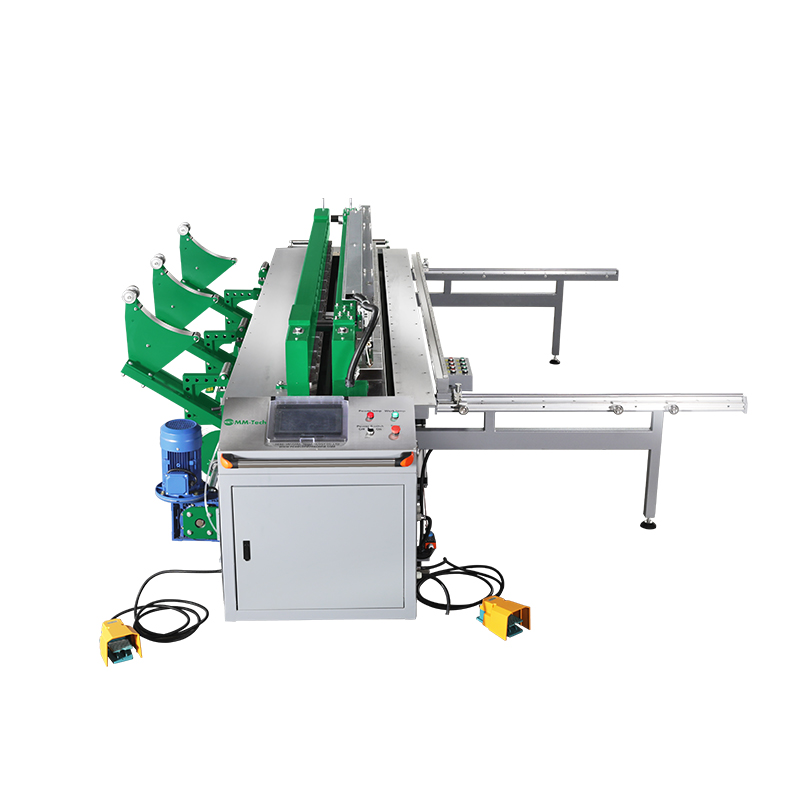

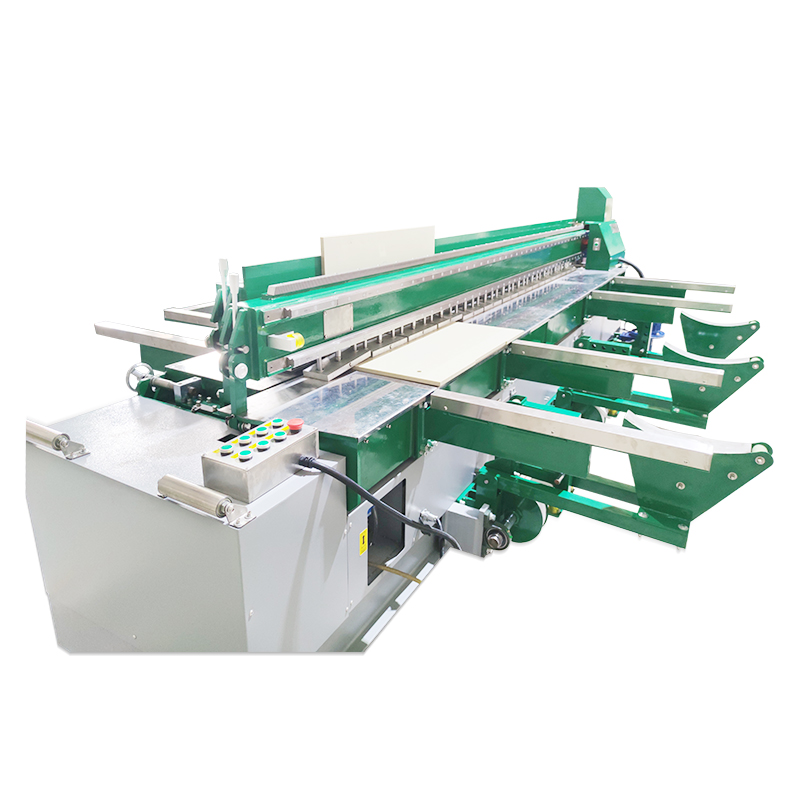

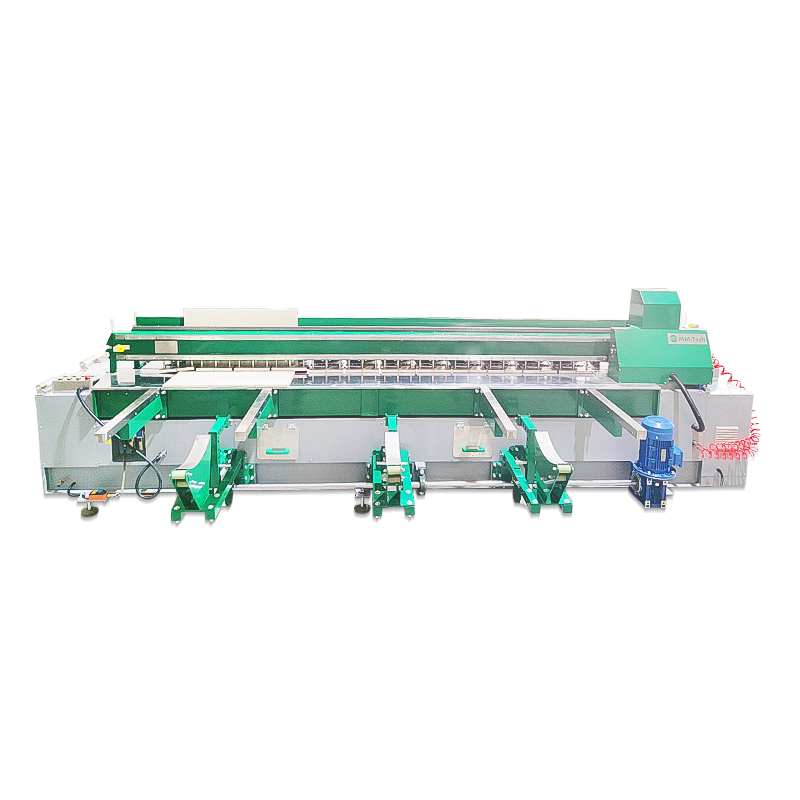

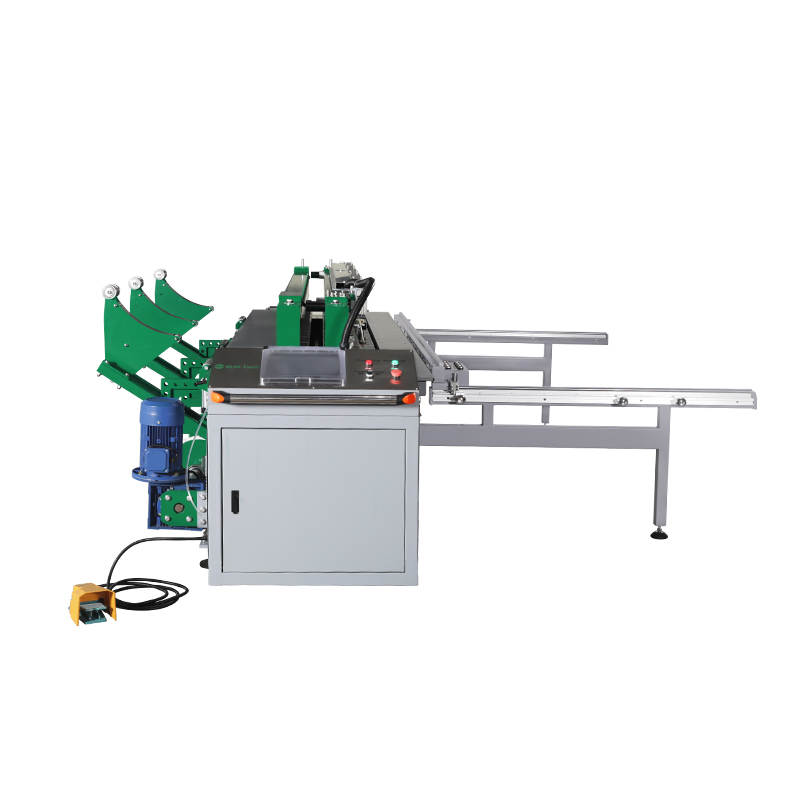

Plastic Sheet Welding Machine with Automatic Sheet Rolling Devices SWT-PH3000

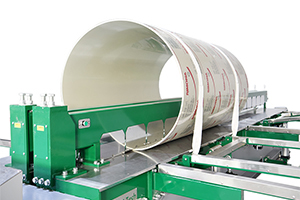

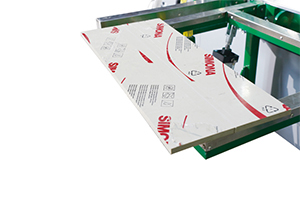

This sheet butt fusion welding machine is suitable for welding thermoplastic sheets made of PE, PP, PVC, PVDF, PC, ABS, Acrylic. It could not only support horizontal circular welding, but also support 90 vertical jointing of the sheets on customer’s request.
Plastic Sheet Welding Machine SWT-PH3000 Description
The MM-Tech SWT-PH3000 is a heavy-duty butt welding machine engineered for bonding thermoplastic sheets with a thickness range of 3–40 mm, boasting a maximum welding width of 3000 mm. Tailored for demanding industrial settings including aquaculture, PP scrubber tower fabrication, and water treatment plants, this high-capacity equipment delivers consistent, reliable performance—even when processing large-format thermoplastic sheets.
Plastic Sheet Welding Machine SWT-PH3000 Technical
| Weldable Materials | PE, PP, PVC, PVDF, PC, ABS, Acrylic Twin Wall sheets |
| Max. Working Length（mm） | 3000mm |
| Weldable thickness (mm) | Hard Sheet 3-50mm Hollow Sheet:Up to 80mm |
| Min. cylinder diameter (mm) | 350mm |
| Pressure setting method | Digital |
| Pressure Controller | SMC electric proportional valve |
| Power consumption (kW) | 9kw |
| Power supply | AC 380V 3P 50/60Hz |
| Compressed air connection (bar) | 6-8 kg/cm² |
| Motor Power of Rolling Belt | 3kw |
| Sheet Locking Clamps | Pneumatic |
| Welding System | CNC |
| Display | 10 inch WEINVIEW |
| Hardware Control Panel | SIEMENS / MITSUBISHI PLC |
| Full Load Current (A) | 15.5A |
| Heating Plate Power | 3P / 6kw |
| Power Cable Size | 4*2.5mm² |
Get Free Quote of Plastic Sheet Welding Machine
MM-Tech is dedicated to supporting you with thermofusion welding machines and project solutions.
Plastic Sheet Welding Machine Video
Plastic Sheet Welding Machine Applications
PRODUCT FEATURES
Compliant with the welding standard DVS2207
Automatic welding system
Hinge connection welding more accurately
Wireless remote control for belt’s motor
Full automatic clamp for rolling
Pneumatic Locking Clamps
Dual digital display thermostat
The equipment used the best components of Festo, Siemens, and Schneider Electric
High-precision positioning of the sheet, stable and repeatable heating, leveling, and welding straight line
Multi-point control clamp lifting
Heating Plate Teflon was Coated by Dupont
Optional rocker arm device column device
Siemens Mitsubishi PLC with 10-inch touch screen
Weldable thickness 3-50 mm

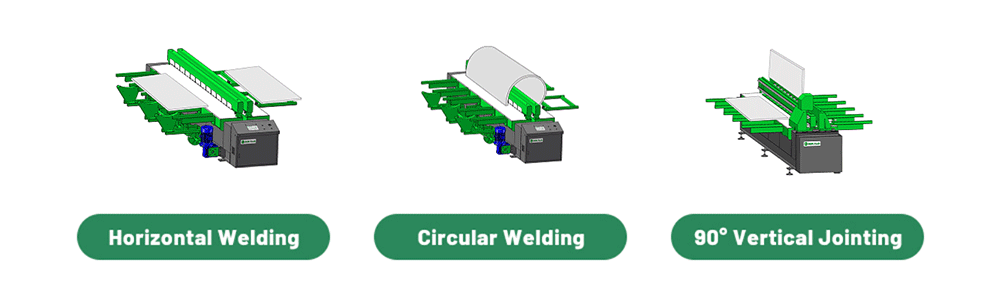

3D Rendering of the Functions of The Plastic Sheet Butt Welder
