You play a crucial role in keeping gas pipelines safe and reliable. Automatic Butt Fusion Welding Machines help you achieve strong welds and full traceability. Weld integrity matters most, especially when strict standards like API 1169、ASME B31.8, DVS 2207-1 and ISO21307 guide every project. These standards set rules for inspection, materials, and welding procedures. The right technology gives you proof of quality and peace of mind.

Safety and data traceability protect communities and support legal compliance.

Standard	Description
API 1169	Establishes best practices for pipeline construction inspection, ensuring traceability and safety.
ASME B31.8	Sets requirements for the design, materials, and operation of gas transmission and distribution piping systems (including plastic piping chapters).
DVS 2207-1/ISO21307	Governs the technical requirements and welding parameters for heated tool butt fusion jointing of PE pipes.

Key Takeaways

Automatic butt fusion welding machines provide consistent, high-quality welds, reducing human error and ensuring safety.
Using HDPE (PE100) pipes enhances pipeline durability, as they resist corrosion and can last over 50 years.
Data logging features in welding machines create complete records for every weld, supporting compliance and quality assurance.
CNC control in automatic machines eliminates guesswork, ensuring precise pressure and temperature for every weld.
Real-time monitoring and quality checks help maintain high standards, making projects safer and more efficient.

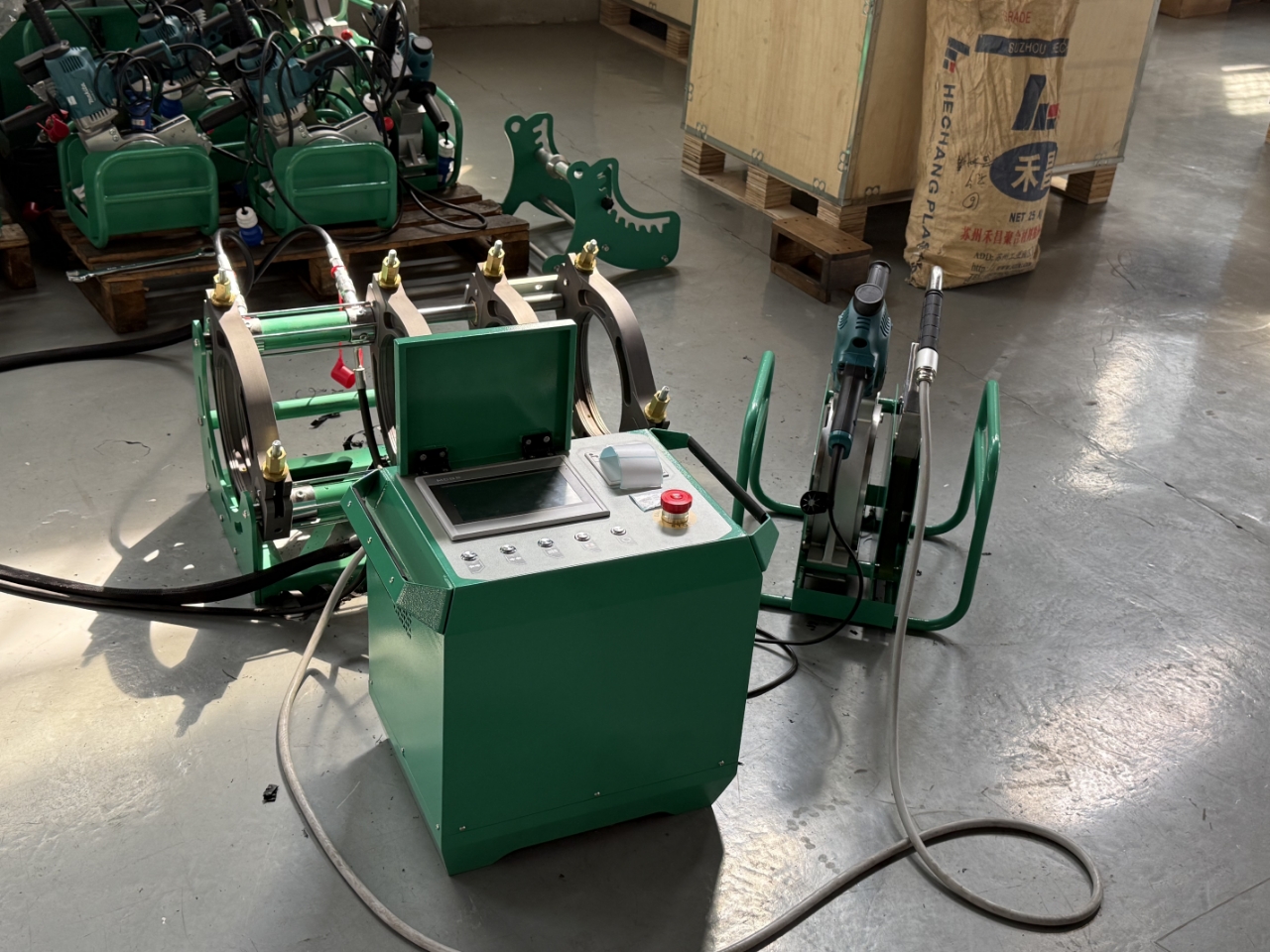

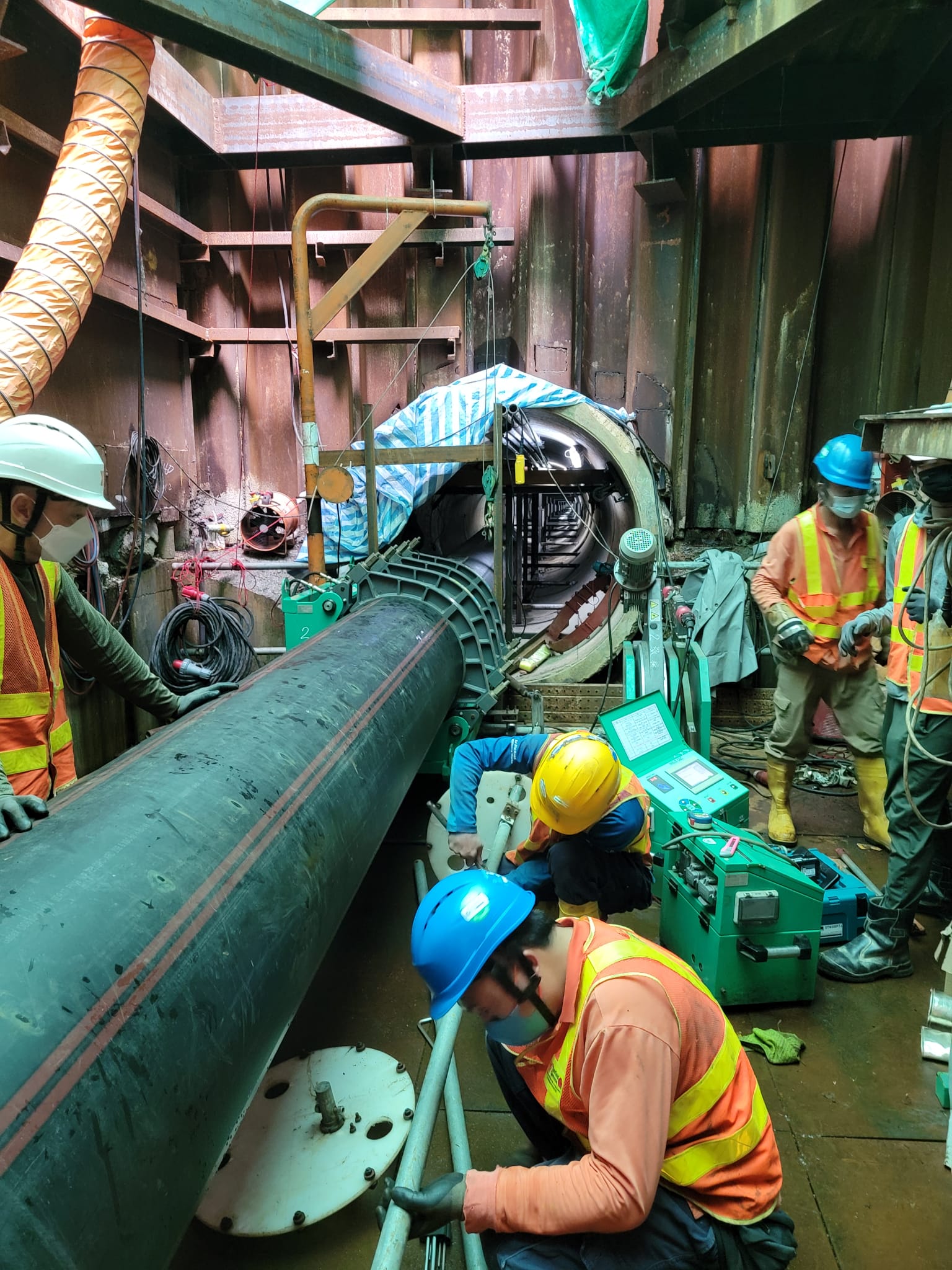

Automatic Butt Fusion Welding in Gas Pipelines

Butt Fusion Welding Process Overview

You need a reliable method to join gas pipes. Butt fusion welding gives you a strong, seamless connection. The process involves several steps that ensure each joint meets strict safety standards:

Clamp the pipes so they stay firmly aligned.
Face the pipe ends to remove oxidation and create a smooth surface.
Align the pipes for perfect mating.
Clean the pipe ends to remove dust and dirt.
Heat the ends with a hot plate until the material melts.
Fuse the melted surfaces together using controlled force.
Hold the joint under pressure while it cools.
Inspect the weld visually for any defects.

This method creates joints that are as strong as the original pipe. You can trust the pipeline to act as a single unit, which helps it withstand dynamic forces and improves its durability. The weld becomes an integral part of the pipeline, eliminating the risk of leaks or mechanical failures.

Butt fusion welding ensures that every joint is built for long-term safety and performance.

Why Automatic Machines Matter

You face many challenges when building gas pipelines. Manual welding depends on operator skill and can lead to mistakes. Automatic butt fusion welding machines change the game. These machines automate every step, from material loading to cooling cycles. You get repeatable accuracy and consistent results every time.

Quality Improvement	Description
Optimized Efficiency	Delivers fast, optimized cycles for standard pipes, while ensuring strict, automatic adherence to mandatory cooling times for heavy-duty thick-walled pipelines.
Precision & Consistency	Automated processes guarantee uniform heating, cooling, and pressure.
Reduced Labor	Less reliance on operator skill reduces errors.

Automatic butt fusion machines use hydraulic clamping for perfect alignment. Sensors monitor temperature and pressure, preventing weak joints. Integrated quality control systems inspect welds in real time and reject any that do not meet standards. You eliminate human error and achieve the highest level of safety and quality.

HDPE (PE100) and Its Advantages

Why HDPE Is Preferred for Gas Pipelines

You want a material that stands up to the toughest conditions. HDPE (PE100) gives you that confidence. This material has become the top choice for gas pipelines because it combines strength, flexibility, and long-term reliability. When you use hdpe, you get a pipe that resists corrosion and damage from chemicals in the soil. Unlike metal pipes, hdpe does not rust or degrade when exposed to moisture or harsh environments.

Here are some key properties that make hdpe ideal for gas pipelines:

Low friction coefficient for smooth gas flow
Excellent resistance to corrosion and chemicals
Good toughness and impact resistance
High tensile and compressive strength
Flexibility to handle ground movement and seismic activity
Service life exceeding 50 years, often lasting much longer
Resistance to slow crack growth and rapid stress propagation
Minimal maintenance requirements

You can install hdpe pipes in areas with uneven terrain or where ground movement is common. The flexibility of hdpe allows it to bend without breaking, which helps prevent leaks and failures. You also benefit from its ability to withstand high pressure and temperature extremes.

Joint Strength and Safety with Butt Fusion Welding

When you join hdpe pipes using butt fusion welding, you create connections that are as strong as the pipe itself. The process heats the pipe ends until the molecules intermingle. As the joint cools under pressure, it forms a single, seamless bond. This method eliminates weak points and ensures leak-free, durable connections.

Hydrostatic pressure tests show that these joints can handle pressures much higher than normal operating conditions. Failures, if they occur, happen in the pipe body, not at the joint. This means you get a pipeline system that is safe, reliable, and built to last. You can trust hdpe and butt fusion welding to deliver the performance you need for critical gas infrastructure.

Key Features of Automatic Butt Fusion Welding Machines

CNC Control and Error Elimination

You want every weld to meet the highest standards. CNC control gives you that confidence. When you use automatic butt fusion welding machines, you only need to enter the pipe size, material, and standard. The machine does the rest. It calculates the right pressure, heating time, and cooling time for each weld. This removes guesswork and stops mistakes before they happen.

CNC automation means you get the same result every time. The machine follows the programmed steps exactly, so the first weld and the last weld look and perform the same. You do not need to worry about operator fatigue or skill level. The system also uses closed-loop pressure monitoring. This feature tracks the pressure during welding and makes real-time adjustments. If the pressure drops or rises, the machine corrects it instantly. This keeps every joint strong and safe.

CNC control and closed-loop pressure monitoring work together to eliminate human error and deliver reliable welds.

Data Logging and Traceability

You need proof that every weld meets project requirements. Automatic butt fusion machines give you complete traceability. The machine records every step of the welding cycle, including:

Bead up
Soaking
Changeover
Joining pressure build-up
Cooling

It logs important details like temperature, pressure, and time for each weld. You can generate a standardized welding report for every joint. This report creates a full audit trail, so you can show inspectors and clients that your work meets all specifications.

Benefit
Traceable, verifiable, and complete records
Audit-ready software
Schedule and progress reporting
Data capture and analysis
Data trends for inspection data
Data overlays for better decisions
Documentation linked to work activity

Data logging helps you comply with industry standards such as ISO 21307 and DVS2207. You can export reports in PDF or Excel format, making it easy to share results with third-party inspectors. This level of documentation supports your reputation for quality and reliability.

Pressure Monitoring and Cooling Lock-Out

You want every weld to be strong and leak-free. Pressure monitoring and mandatory cooling lock-out make this possible. The machine uses closed-loop hydraulic feedback to keep the pressure steady during welding. If there are small changes in pressure, the system adjusts automatically. This ensures that each weld matches the programmed settings.

The mandatory cooling lock-out feature is also important. The machine will not let you remove the pipe until the cooling timer finishes. This prevents cold welds, which can cause leaks or failures in the pipeline. You do not have to guess when the weld is ready. The machine controls the process and keeps your project safe.

Feature	Contribution to Weld Quality
Efficient Heat Generation	Ensures uniform and controlled heat distribution for robust welds.
Precision Alignment	Guarantees perfect alignment of pipes for strong, consistent welds.
Automation	Reduces human error and increases production efficiency.
Quality Control	Monitors the welding process for consistent quality in every weld.

You can trust certified automatic welding machines to help you meet standards like DVS2207, ISO 21307. These machines support your welding throughput and efficiency, making your work faster and more accurate. You get the best results with less effort, and you protect your team and your community.

Automatic butt fusion welding machines combine advanced features to give you unmatched efficiency, safety, and quality in every project.

Case Study: Saudi Arabia Gas Pipeline Project

Project Challenges and Solutions

Implementing a massive municipal gas network expansion in Saudi Arabia’s Eastern Province presents extraordinary environmental and technical challenges. This critical infrastructure project required laying 24.5 kilometers of high-pressure gas mainline using premium Alwasail brand 355mm SDR11 HDPE (PE100) pipes.
With an extreme wall thickness of 32.2mm, the technical challenges were immense:

Harsh Desert Environment: Scorching daytime temperatures and unpredictable sandstorms threaten to cause rapid temperature drops on the molten pipe ends and introduce dust contamination.
Thick-Walled Fusion Precision: A 32.2mm wall thickness requires massive heat energy and deep, uniform thermal penetration, followed by a mandatory, uninterrupted pressure-holding cooling phase of over 30 minutes.
Zero-Tolerance Quality Audits: The client’s Third-Party Inspectors (TPI) demanded 100% non-destructive testing (NDT) and tamper-proof digital welding records for every single joint.

To overcome these challenges, the contractor deployed the MM-Tech 90-355mm CNC Automatic Butt Fusion Welding Machine equipped with optional automatic heater removal.

During operation, the welder simply selected “355mm SDR11 PE100” on the CNC interface. After the system automatically measured the real-time drag pressure of the heavy pipeline, it instantly calculated the exact heat-soaking time, cooling time, and fusion pressure required. The closed-loop hydraulic feedback system kept the pressure perfectly stable, and the heating plate delivered deep, uniform heat penetration, completely eliminating surface scorching or internal cold joints.

Additionally, the optional automatic heater removal popped the heating plate out in milliseconds, closing the pipe ends instantly to prevent oxidation and temperature drop amidst the dusty desert wind.

Quality Outcomes with Automatic Butt Fusion Machines

The MM-Tech CNC automatic welding machines delivered flawless results across the entire 24.5 km mainline:

100% NDT Pass Rate: Upon project completion, the inspectors conducted comprehensive Ultrasonic Testing (UT) on thousands of welded joints. Every single joint passed on the very first attempt, achieving true absolute zero leakage.
Flawless Traceability: At the end of each day, the project manager exported complete PDF welding reports via USB. Each report detailed the Alwasail pipe brand, ambient temperature, and the exact secondary pressure-time curves. This military-grade documentation was instantly signed off by the strict TPI.

The project manager highly praised the equipment: “Alwasail’s 355mm SDR11 pipes are exceptionally thick and heavy. MM-Tech’s CNC machine completely revolutionized our construction mode! It is incredibly smart, exceptionally reliable, and simply features a bulletproof design! Over 24.5 kilometers of gas lines, there was not a single rework or leakage point. We will replace all our gear with MM-Tech’s automatic machines for our next bids!”

FAQ

What is the main benefit of using automatic butt fusion welding machines?

You get consistent, high-quality welds every time. The machine controls pressure, temperature, and timing. This reduces human error and ensures each joint meets strict safety standards.
