You see Automatic Butt Fusion Welding Machines changing how chemical plants and gas networks work. The MM-Tech SWT-V250/90A gives better automation and very good accuracy. You get more safety and trust in every weld. Industry numbers show that over half of production projects now use automatic machines. As the Asia-Pacific region rapidly expands its critical energy and chemical infrastructure, the demand for highly reliable, automated pipe joining solutions has reached unprecedented levels.
Statistic Description | Value |
|---|---|
Percentage of projects specifying automatic machines | Over 50% |
Annual pipeline installations in Asia-Pacific | Exceeds 200,000 km |
You get a machine that makes operations and process control much better.
Key Takeaways
The MM-Tech SWT-V250/90A makes welding more accurate and safe. This is why it works well for chemical and gas jobs. This machine does the welding by itself. It helps people make fewer mistakes. It also makes sure every weld is good and the same. The data logging tool helps you keep track of welds. This makes it easier to pass checks and follow rules. When you use HDPE pipes with this machine, the joints are strong and do not leak. These joints also do not rust or get hurt by strong chemicals. MM-Tech always works hard to make good and new things. This means the machine works well and keeps fluid systems safe.

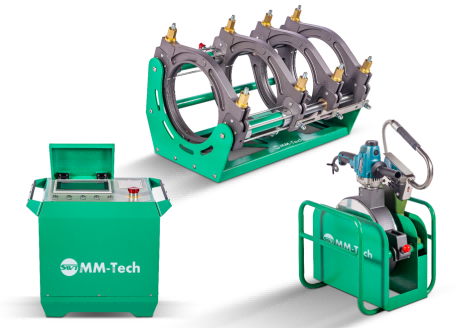

Core Profile of MM-Tech SWT-V250/90A
Technical Specifications and Material Compatibility
You need a welding machine that works in tough places. The MM-Tech SWT-V250/90A gives you that power. You can use it for high-pressure jobs and harsh environments. This machine handles a wide range of pipe sizes and materials. You get a tool that fits many projects in chemical and gas industries.
Here is a quick look at the main technical specifications:
Specification | Details |
|---|---|
Supported Pipe Diameters | 90-250mm (90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm) |
Working Voltage | 220V ±10%, 50Hz |
Total Power | 3.95 kW |
Planning Tool Power | 1.1 kW |
Heating Plate Power | 2.1 kW |
Hydraulic Unit Motor Power | 0.75 kW |
Environment Temperature | -10° – 45° |
Application Materials | PE, PP, PVDF |
You get full compatibility with HDPE, PP, PVDF pipes. The SWT-V250/90A butt fusion welding machine meets strict international standards. You can trust it for ISO 21307 and DVS 2207-1projects. This means you always meet the rules for chemical and gas pipelines.
You can use this machine to seamlessly weld a wide variety of thermoplastic pipes and fittings. The design lets you work in cold or hot weather. You do not have to worry about dust or splashes. The IP54-rated cabinet keeps the system safe and clean.
Fully Automatic CNC Control and Data Logging
You want every weld to be perfect. The SWT-V250/90A butt fusion welding machine gives you that control. The fully automatic CNC system does all the hard work for you. You only need to enter the pipe size and material. The machine calculates the heat time, pressure, and cooling cycle.
The CNC system removes human error. You get the same high quality every time.
Real-time monitoring checks the welding process. The system adjusts itself if anything changes.
You do not need to worry about mistakes. The machine keeps all parameters within safe limits.
You get a closed-loop hydraulic and thermal control system. This means the SWT-V250/90A butt fusion welding machine checks and adjusts pressure and temperature during every weld. You do not have to guess or double-check.
The automation boosts your productivity. You can finish more joints in less time.
You get accurate welds, even on large or thick pipes.
The SWT-V250/90A butt fusion welding machine is ideal for big projects where you need speed and accuracy.
You also get tamper-proof data logging. The machine records every weld. You can export the data as PDF files. This helps you pass audits and prove your work. You can show every detail to inspectors or clients.
Tip: You can use the digital logs to track every joint in your pipeline. This makes your work easier during inspections.
You can rely on the SWT-V250/90A butt fusion welding machine in chemical plants and gas networks. The system works well with other thermoplastic pipe welding machines. You get a tool that stands up to tough jobs and strict standards. You can trust it for every project.
Automatic Butt Fusion Welding Machines in Chemical Processing
Zero-Leakage and Process Consistency
You work in a chemical plant. Safety and reliability are very important. Automatic butt fusion welding machines help stop leaks before they happen. Leaks can cause water loss or dangerous spills. These machines make welds that do not leak. This protects your facility and the environment.
You get the same results every time you use these machines. The system controls heat soak times and cooling periods. You do not have to guess or depend on manual skills. The machine keeps every weld strong and reliable. You avoid mistakes from tired or distracted workers.
In chemical processing, joint leaks can lead to catastrophic hazardous material spills, environmental damage, and costly emergency plant shutdowns. Automatic fusion eliminates these weak mechanical joints.
The parent material stays resistant to chemicals in the weld zone. You do not worry about chemical attacks on gaskets or couplings.
Fully automatic machines control heat soak and cooling. This keeps welds strong and stops leaks.
Automatic butt fusion welding machines use advanced controls. They make sure every weld meets high standards. The machine applies pressure, aligns pipes, and manages heating and cooling. You get strong joints that hold up under pressure and resist failure.
Principle | Explanation |
|---|---|
Pressure Application | Makes molten materials mix well, forming a strong bond and removing air gaps. |
Accurate Alignment | Stops uneven stress, lowering the risk of joint failure under pressure. |
Controlled Heating/Cooling | Keeps the molecular structure stable during cooling, making the joint strong. |
You trust automatic butt fusion welding machines. They give you leak-proof performance and process consistency. You know every weld will meet your chemical plant’s needs.
HDPE Pipe Advantages for Chemical Plants
You pick HDPE pipes for your chemical plant. They have many benefits. HDPE pipes work well with automatic butt fusion welding machines. You get strong joints and reliable performance. HDPE pipes do not corrode or rust. They resist harsh chemicals. This means less maintenance and lower costs.
Advantage | Description |
|---|---|
Corrosion and Chemical Resistance | HDPE does not corrode, rust, or break down with harsh chemicals. This lowers maintenance costs. |
Durability | HDPE pipes can be heat fused. This makes strong, leak-free joints and removes leak points. |
Resistance to Chemicals | HDPE stays stable when exposed to many chemicals. It is reliable for transport systems. |
HDPE pipes handle abrasion and vibration better than metal pipes. Chemical slurries can wear pipes down fast. HDPE stands up to tough conditions. You get pipes that last longer and keep your system running well.
You use automatic butt fusion welding machines to join HDPE pipes. Welds are as strong as the pipe itself. Your chemical plant gets leak-proof performance, chemical resistance, and durability. You build systems that protect workers and your facility.
Tip: You can use HDPE pipes and automatic butt fusion welding machines to upgrade old systems and cut leaks. This saves water and lowers maintenance costs.
Automatic butt fusion welding machines and HDPE pipes give you the best performance for chemical processing. You get strong joints, reliable welds, and a safer plant.
Stringent Standard Compliance in Gas Networks
Project Challenges and Execution with SWT-V250/90A
Working on natural gas pipelines means you must follow strict rules. These projects need you to meet high safety and quality standards. In North America, the rules are some of the toughest in the world. You have to follow ASTM F2620 for every weld. This standard explains how to join HDPE pipes using heat fusion. You also need to keep careful records for each joint.
Here is a table that lists the main rules for butt fusion welding in gas networks:
Compliance Requirement | Description |
|---|---|
Data Recording (ASTM F3124) | The CNC system automatically captures and logs the TTP (Temperature, Time, and Pressure) plot, operator ID, and machine data, ensuring 100% compliance with ASTM F3124 without manual intervention. |
Fusion Protocol (ASTM F2620) | Pre-programmed with strictly regulated heating, soaking, and pressure cycles to completely fulfill ASTM F2620 standard practices for heat fusion joining of PE pipe. |
Electrical & Field Safety | Features an IP54-rated weather-resistant enclosure and integrated GFCI protection, safeguarding operations in high-moisture and extreme field environments. |
ASTM Compliance | ASTM F2620 gives the rules for heat fusion joining in HDPE jobs, focusing on certain pressure ranges. |
QA/QC Joint Reporting | Automatically exports tamper-proof digital weld logs (PDF/CSV) directly via USB, providing verifiable traceability for Third-Party Inspection (TPI) audits. |
You use the SWT-V250/90A to help you follow these rules. The machine lets you control each step. You type in the pipe size and material. The system figures out the right heat and pressure. You get a good weld every time. The machine saves all the data for each joint. You can send these logs for checks. You do not have to worry about missing any records.
Flawless Results and Client Feedback
You want results you can count on. On a 24-kilometer natural gas job in North America, you see the SWT-V250/90A at work. The project used thick-wall PE100 pipes. The machine made every weld just right. You get a digital record for each joint. Inspectors look at the logs and see that every weld follows the rules.
When you test the pipes, you find no leaks. Every joint passes the pressure and ultrasonic tests. The project manager says,
“The SWT-V250/90A made our job simple. We did not worry about mistakes. The machine followed the rules every time. The data logs helped us pass all the checks.”
You can trust the SWT-V250/90A for your gas network jobs. You follow every rule. You get safe, strong, and reliable pipelines.
MM-Tech Mission and Industry Standards
Commitment to Quality and Innovation
mm-tech is a top company in thermoplastic welding. Their goal is to make advanced welding machines. These machines meet the highest industry standards. You get machines that are precise and reliable. mm-tech follows strict DVS rules for safety and performance. This makes mm-tech a leader in welding technology.
You can see mm-tech’s focus on quality and new ideas in many ways:
The company carefully matches mechanical and electrical parts. This helps every weld turn out well.
mm-tech has worked with big brands in over 30 countries since 2011.
They offer a comprehensive range of advanced thermoplastic welding equipment, including automatic CNC butt fusion, electrofusion, and specialized fitting fabrication machines.
Research and development help them make better and safer machines.
They have their own lab and testing center. Every machine is checked for global certifications and environmental rules.
mm-tech cares about the planet. Their workshops are dust-free and use less energy.
You can count on mm-tech for machines that work the same way every time. Their focus on quality and new ideas helps you finish projects and pass tests.
Vision for Safer Fluid Transport
You want pipelines and systems to be safe and reliable. mm-tech wants this too. The company works to improve automatic butt fusion welding machines for the world. You get machines that follow strict standards and global rules. mm-tech’s technology helps you build safer water, chemical, and gas networks.
You can see mm-tech’s vision in these ways:
Goal | How MM-Tech Supports You |
|---|---|
Safer Fluid Transport | Advanced welding machines and hydraulic control systems |
Reliable Infrastructure | Equipment meets global certifications and strict standards |
Sustainable Operations | Energy-saving systems and dust-free workshops |
Note: You can trust mm-tech’s thermoplastic welding solutions. They help you build systems that keep people and the environment safe.
You pick mm-tech for quality, new ideas, and a clear goal for safer fluid transport. Their mission and standards guide every machine and project.
You notice the MM-Tech SWT-V250/90A changes how you do welding for chemical and gas jobs. The machine utilizes a highly precise PTFE-coated heating plate for uniform contact heating, ensuring flawless joint integrity in chemical and gas infrastructure. You know MM-Tech is a leader in thermoplastic welding. You see great work in HDPE pipe welding and new ideas in every machine. You can use this machine for safe welding in hard places. It makes strong joints and keeps pipelines safe. You can look at digital logs for each weld. The machine helps you pass checks and inspections. You can make your systems better with this machine. You build safer networks and keep your facility safe. You can talk to MM-Tech to see if this machine fits your next project.
The MM-Tech SWT-V250/90A helps you work safer and faster. You pick a machine that brings new standards to welding.
Here’s what you can do:
Ask for a demo of the machine.
Check technical papers and welding logs.
Talk to MM-Tech experts to plan your project.
FAQ
What makes the MM-Tech SWT-V250/90A ideal for chemical and gas applications?
You get a machine that handles pressure and creates strong joints. The system delivers performance under extreme conditions. You can trust the machine to keep your facility safe. You see reliable joints every time you weld.
How does the machine ensure leak-free joints?
You use automatic controls to manage pressure. The machine aligns pipes and forms joints that do not leak. You see consistent results. You avoid mistakes that cause weak joints. You protect your system from leaks.
Can you use the MM-Tech SWT-V250/90A for thick-wall pipes?
You can weld thick-wall pipes with this machine. The system calculates the right pressure. You get strong joints. You do not worry about cold welds. You see perfect joints even on heavy pipes.
How does data logging help you with audits?
You get digital logs for every weld. The logs show pressure, time, and joint details. You can share these logs with inspectors. You prove your work. You make audits easy. You track every joint in your pipeline.
What safety features protect you during welding?
You see a sealed cabinet that keeps dust and splashes away. The machine controls pressure and keeps joints stable. You avoid accidents. You get safe joints. You work with confidence. You trust the machine for every weld.
