A sheet butt fusion welding machine connects plastic sheets. It is used for water heater inner tanks. Strong joints are important. They stop leaks and handle high pressure. This helps lower maintenance needs. The MM-Tech SWT-PH3000 works with PP, PVC, PVDF, and PE materials:
Specification | SWT-PH3000 |
|---|---|
Plate Thickness (mm) | 3-30 |
Welding Length (mm) | 3000 |
Key Takeaways
The SWT-PH3000 welding machine makes strong joints. These joints do not leak. This helps water heater tanks last longer. It also means less fixing is needed.
Automation features help the machine work faster. Dual functionality lets it make different tank shapes. This gives more choices for production.
Regular maintenance keeps the machine working well. Quality checks make sure it does a good job. Manufacturers can trust the results.
Butt Fusion Welding Basics
Principle and Process
Butt fusion welding joins two plastic sheets. It heats the edges and presses them together. The heat makes the material soft. Pressure helps form a strong bond. This method works well for thermoplastics like PVC and PE. The Sheet Butt Fusion Welding Machine controls heat and pressure. It keeps the weld even and strong. Operators follow easy steps to make a smooth, leak-proof joint.
Application to PVC/PE/PP Tanks
Water heater inner tanks need strong joints. PVC/PP/PE are good choices because they resist rust and handle hot water. Butt fusion welding makes a seamless connection. It stops leaks and keeps the tank strong. The machine can weld flat sheets or roll them into circles. This lets manufacturers build tanks in many shapes and sizes.
Advantages Over Other Methods
Other ways to join sheets include solvent welding and mechanical fastening. Solvent welding uses chemicals to melt plastic. Mechanical fastening uses bolts or screws. Butt fusion welding does not need extra materials. It makes a joint as strong as the sheet. The table below shows how butt fusion welding compares to other methods in tests:
Test Type | Findings |
|---|---|
Short-term tensile test | Butt fusion joints have the highest short-term strength. |
Long-term performance tests | Butt fusion joints resist slow crack growth very well. |
Failure mechanisms | Short-term failures happen from low strength. Long-term failures happen from cracks. |
Butt fusion welding gives tanks strength and stops leaks. It helps lower maintenance and keeps water heaters safe.
Sheet Butt Fusion Welding Machine Features
Key Specifications
The MM-Tech SWT-PH3000 is made for many plastics. It can weld HDPE, PP, PVC, and PVDF sheets. The machine works with sheets from 3 mm to 30 mm thick. This covers most water heater tank needs. The longest welding length is 3000 mm. This lets you make big panels or rolled tanks.
Material Type | Thickness Range (mm) |
|---|---|
HDPE, PP, PVC, PVDF | 3 – 30 |
Manufacturers can weld flat or round parts. The smallest roll circle is 380 mm. This means the machine makes straight and curved tank pieces.
Automation and Control

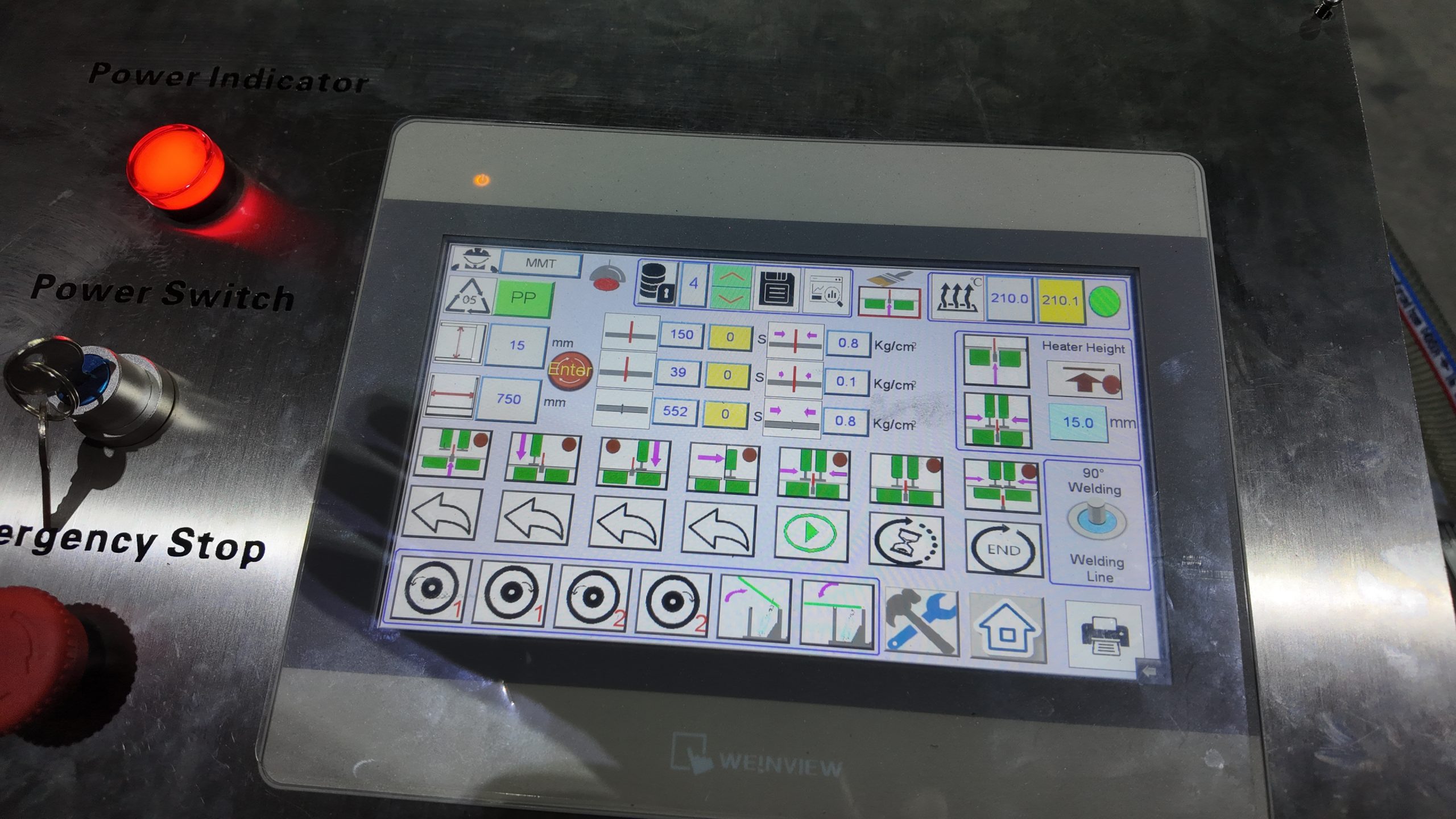

The SWT-PH3000 uses a Siemens touchscreen system. This makes the machine simple to use. Operators set welding details before starting. This saves time and keeps results steady. The machine records welding data for each job. This helps check quality and follow rules.
Feature | Benefit |
|---|---|
Parameter pre-setting | Cuts setup time and saves welding recipes for different plastics. |
Welding data recording | Keeps track of settings for quality checks and records. |
Multi-language interface | Helps users from many countries. |
Remote upgrade capability | Lets software update for new welding profiles and features. |

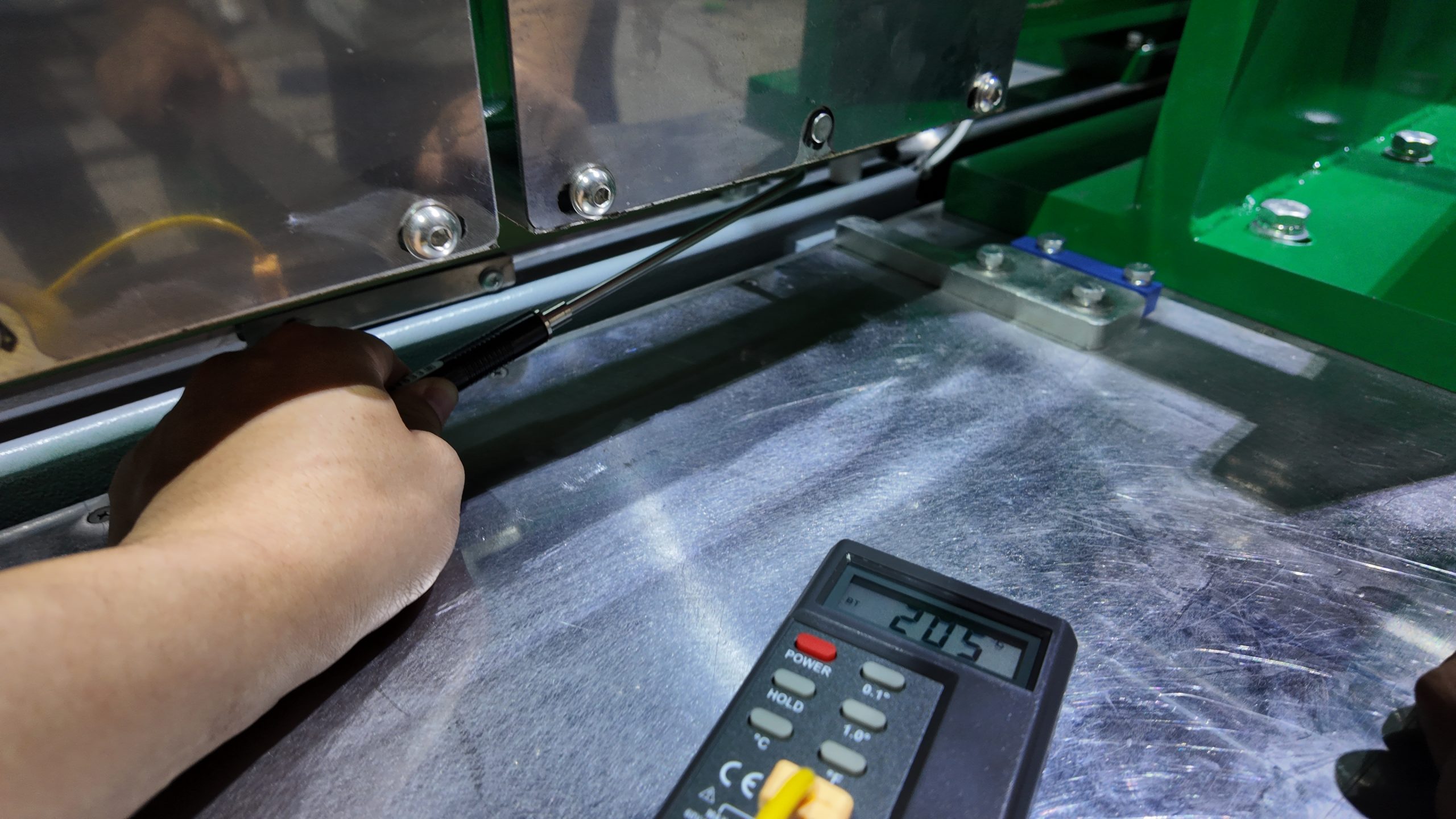

The touchscreen is easy to read. It shows users each step. The system controls the heating plate temperature. The difference between any two points on the plate is 0°C. The difference between the plate and heating zone is only +/-5°C. This control makes every weld strong and even.
Tip: Good temperature control stops weak spots and keeps joints leak-proof.
Dual Functionality and Versatility
The SWT-PH3000 does more than weld. It can bend plastic sheets from 2 to 100 degrees. This lets users make many shapes with one machine. The machine can weld and bend in one setup. This saves space and cuts down on extra tools.
Manufacturers can switch between welding and bending fast. The machine is built for quick changes. Most worn parts can be replaced in less than two minutes. This keeps production going and lowers downtime.
Safety and Quality Assurance
Safety and quality matter in every workshop. The SWT-PH3000 has features to protect workers and products. The machine checks temperature and pressure during each weld. This stops mistakes and keeps joints strong.
The heating plate is important for quality. Even heat across the plate means every weld gets the same warmth. The small difference between the plate and heating zone (+/-5°C) melts plastic evenly. This makes smooth, strong joints that do not leak.
The machine comes with a two-year warranty. If a part breaks under normal use, MM-Tech will replace it for free. Many customers give good reviews. They say the machine is reliable and easy to use.
Warranty Duration | Description |
|---|---|
2 Years | Standard warranty for the MM-Tech SWT-PH3000 sheet butt fusion welding machine. |
Customers are very happy.
The machine meets strict quality rules.
Training and setup help are offered.
Note: Inspection and training before shipping help new users start quickly and safely.
The SWT-PH3000 is a smart pick for anyone who needs strong, leak-proof joints in PVC or PE water heater tanks. It has advanced features, easy controls, and strong support.
Choosing and Using the Right Machine
Selection Tips
Choosing the right welding machine depends on your project needs. Start by looking at the size of the water heater tank. Larger tanks need machines with longer welding lengths. Check the material type. Some machines work with many plastics, while others do not. Think about how many tanks you need to make each day. High production needs a machine that can work fast and stay reliable.
Look for machines that give strong, even welds around the tank.
Make sure the machine can handle the thickness and type of plastic you use.
Ask for advice from professionals if you are unsure.
Matching Machine to Project Needs
A Sheet Butt Fusion Welding Machine is ideal for making water heater tanks. It adapts to different tank sizes and materials. This machine gives uniform welds, which helps keep tanks strong and leak-free. For factories that make many tanks, an automatic machine saves time and keeps quality high. Some machines can switch between welding and bending, which adds more value.
Project Need | Machine Feature Needed |
|---|---|
Large tank size | Long welding length |
Many tanks per day | Fast, automatic operation |
Different plastics | Multi-material support |
Custom shapes | Automatic circular welding function |
Troubleshooting and Maintenance
Good installation and training help prevent problems. Always follow the setup guide. If the machine stops working, check the power and settings first. Clean the heating plate often to keep welds strong. Replace worn parts quickly. Most parts can be changed in minutes. If you have trouble, contact after-sales support for help.
Tip: Regular checks and cleaning keep your machine working well and your tanks safe.
Sheet Butt Fusion Welding Machine makes tanks strong and leak-proof.
Automation and dual functions help make tanks faster.
Quality checks help you feel confident about your tanks.
Talk to experts for special help and support. MM-Tech SWT-PH3000 works well for making water heater tanks.
FAQ
What materials can the SWT-PH3000 weld?
The SWT-PH3000 can weld HDPE, PP, PVC, and PVDF sheets. It works well for water heater tanks and other plastic products.
How thick can the machine weld?
The machine handles sheets from 3 mm to 30 mm thick. Thicker options are available by request.
Is training provided for new users?
Yes. MM-Tech offers training and setup help. This support helps users start quickly and work safely with the machine.
