High-purity chemical and ultrapure water piping systems require strict control of particles and contamination. In conventional contact butt fusion, the pipe ends are heated by direct contact with a heating plate. For demanding high-purity applications, this contact introduces additional contamination-control considerations, particularly if molten polymer adheres to or is disturbed by the heater surface.
Non-contact infrared welding eliminates direct contact between the pipe ends and the heating element, helping reduce contamination risks during the heating process.
According to the SEMI F63 standard, on-line particles larger than 0.05 μm must be less than 200 particles per liter in ultrapure water used in semiconductor cleanrooms.
Melted waste ruins every pipe joint. The MM-Tech IRW 110 manual non-contact infrared welding machine stops dirt and pollution. This welding technology uses light energy. Clean heat gives good temperature control. Safe heat protects your cleanroom project. You complete each weld during your work.
Key Takeaways
Infrared heat works without touching the pipe, which prevents tiny bits from flaking off and keeps fluids clean inside pure rooms.
The IRW 110 machine safely connects advanced polymers such as PVDF and PFA.
Magnetic clamps and a built-in trimmer make pipe setup faster in small spaces.
Huaxin Semiconductor reached a 100% success rate by using this welding machine.

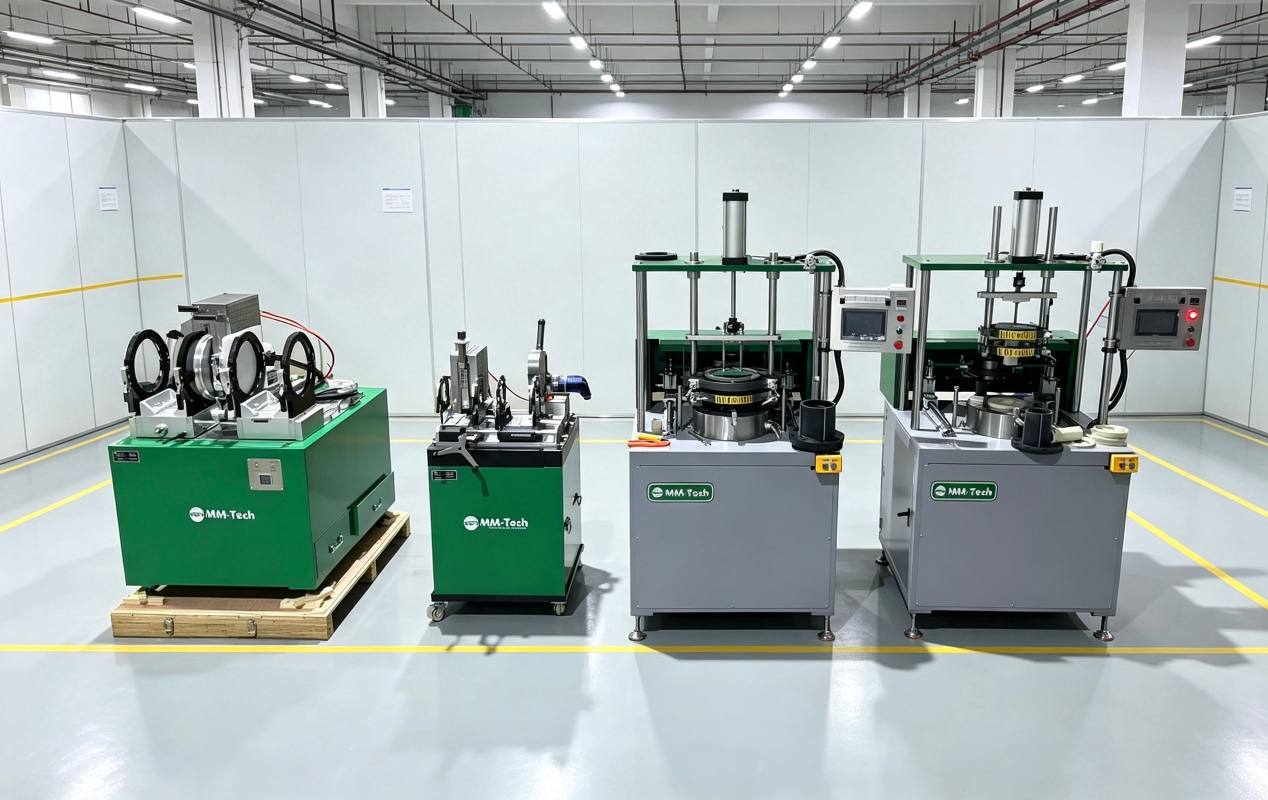

Eliminating Cleanroom Micro-Particle Contamination
Particle Flaking Hazards in Standard Fusion
You run huge pollution risks when connecting ultra-pure chemical lines with hot tools. Standard contact heating plates press directly against plastic materials. Sticky melted bits cling to hot plates during heating cycles. This contact breaks down the plastic material. The hot plastic flakes off into tiny particles. These particles travel through your fluid lines. They pollute pure water and acid streams in cleanrooms.
Old contact fusion tools use heavy heating elements made of metal. Heat transfers from these metals directly into melted polymer edges. Rubbing creates fine debris and introduces trace metals into your clean lines. Trace metals ruin delicate silicon wafers. Traditional welding technologies cannot control particles well during high-purity assembly work. You lose bond strength when flaking debris spoils a weld joint. Therefore, standard heating tools hurt your overall process quality.
Non-Contact Principles of the Infrared Welding Machine
The MM-Tech IRW 110 manual non-contact infrared welding machine avoids direct physical contact. This machine sends radiant heat through air to melt pipe ends. Radiant heat provides smooth warming without touching your plastic surfaces. You protect pure polymers like PVDF, PFA, ECTFE, PPH, and PP from surface pollution. This heating method keeps original material properties safe. You avoid trace metals because radiant heat elements stay completely separated from the polymer.
Infrared radiant energy heats the pipe-end surfaces without direct contact with a heating plate. The absorbed thermal energy then spreads through the material, creating the controlled molten layer required for fusion, helping reduce contamination risks associated with direct heater contact and supporting the cleanliness requirements of high-purity piping systems.
This clean micro-joining approach offers total protection for every weld joint. The non-contact joining process ensures great seam strength for tough industrial uses. Advanced non-contact infrared heat creates a smooth weld bead. This non-contact welding technology maintains material purity throughout your installation.
You gain strong structural holding in every thermoplastic pipe joint.
You stop trace metals contamination in your high-purity piping system application.
You improve your welding process across every main fab application.
This non-contact welding technology outperforms older welding technologies. You secure a reliable weld every single time through this smart joining process.
Engineering Core: The IRW 110 Infrared Welding Machine
Modern factories need strong equipment for tough high-purity piping tasks. The MM-Tech IRW 110 manual non-contact infrared welding machine offers great precision for cleanrooms. Engineers designed this tool to weld advanced polymers without adding unwanted trace metals.
Technical Parameters and Thermal Control
You get full control over your heat settings during the non-contact warming step. The inner system sends steady radiant heat across all surfaces without touching plastic parts. This clean heating method stops heat damage while keeping the plastic pure. No hot metal touches the plastic, so you keep foreign metals out of cleanroom lines. Radiant heat stops harmful trace metals from getting into ultra-pure fluid lines. Your welding work avoids material dirt completely.
Parameter | Technical Specification |
|---|---|
Working Range | 20–110 mm (1″ to 4″ IPS) |
Infrared Heater Power | 1200 W |
Milling Cutter Power | 850 W |
Maximum Total Power | 2050 W |
Heating Temperature Range | 180–600°C |
Input Power Supply | 220 VAC, 50/60 Hz |
Protection Rating | IP65 |
Machine Dimensions | 525 × 670 × 410 mm |
You can set heat from 180°C to 600°C to fit your exact plastic needs. The 1200W heater sends direct radiant heat into the pipe end. Radiant heat boosts seam strength without burning outer plastic layers. The 850W trimmer cuts rough ends cleanly before warming starts. You keep trace metals out of the weld area during this prep step. An IP65 rating shields internal parts from cleanroom dust and liquid spray. This high rating helps the machine work smoothly during daily tasks.
Non-contact heat control builds better joints than old contact tools:
Non-contact heating stops plastic sticking, which prevents trace metals pollution.
Radiant heat warms parts evenly to make your final weld super strong.
Exact heat checks keep every joining step steady for safe chemical storage.
Ergonomic Hardware and Rapid Clamping Mechanics
You can work in tight spots easily because the machine measures 525 × 670 × 410 mm. Workers carry this small machine into narrow cleanroom spaces with zero hassle. You lock straight pipes quickly using self-adjusting clamps. The fast clamps line up parts neatly, giving your weld joint great balance. Workers finish quick setups without bringing trace metals into clean areas.
You can switch clamp sizes fast with magnetic inner jaws. The magnet system holds parts tight, speeding up your welding work. The built-in trimmer squares off pipe ends to make a clean joining surface. Precise trimming builds strong seams on all pipe sizes during assembly. You stop alignment mistakes while keeping trace metals out of all joined areas.
You can set up three main piping jobs:
Straight pipe-to-pipe fusion for long fluid supply lines.
Pipe-to-fitting fusion for making turns in the piping layout.
Fitting-to-fitting fusion for tight valve manifold blocks.
You keep the right pressure using a separate control tool. Good physical pressure makes every weld joint stronger as it cools down. This special welding method guards your pure liquid system against leaks. Modern non-contact welding tools make daily piping work much easier. Advanced non-contact heating lines up joints well while stopping trace metals in pure lines. The operator lines up each joint neatly before it cools down.
Older welding tools often leave uneven stress in plastic parts. Standard plastic tools need a lot of repairs. Radiant non-contact heat builds stronger bonds across all your jobs. You get maximum seam strength in every hard factory job. This proven non-contact method gives top safety for critical high-purity lines. You remove trace metals completely from important pipe seams. Improve your pure chemical lines with this smart equipment during daily welding work.
Field Proven Results: 12-Inch Wafer Fab Case Study
Class 100 Cleanroom Verification
Huaxin Semiconductor put in critical pipes for pure water and strong acids at a factory. Workers must protect Class 100 cleanrooms from foreign metals and tiny debris. The team chose the MM-Tech IRW 110 manual infrared welding machine for their pipes. This clever tool creates pure radiant heat without any direct touching. Gentle heat prevents trace metals from getting into warm melted plastic. Your non-contact thermal process keeps chemical purity high across every cleanroom application.
Non-contact infrared heat transfers energy without surface contact, eliminating micro-particles and unwanted metals to protect cleanroom fluid purity.
Old hot plates drop heavy metals and flake under high heat. This clean heating method stops damage to your materials during every step. You pass tough quality checks easily because zero melted plastic sticks to metal. The non-contact joining process removes surface dirt from your parts completely. As a result, your team confirms zero flaking particles across the chemical network.
Installation Efficiency and Pass Rate Success
You need to finish tricky pipe layouts inside tight factory spaces. Small work areas make standard tool setup very hard for your crew. Quick magnetic clamps let your workers switch pipe sizes in seconds. Your team lines up pipe ends neatly without adding foreign metals. A built-in trimmer cuts flat ends for smooth plastic flow. Precise prep work creates strong joints under clean radiant heat. You get great overall seam strength because radiant heat warms the plastic core evenly.
Your site operators achieve outstanding project results through controlled heating cycles:
This equipment offers great structural strength while keeping plastic pure under steady heat.
Every smooth weld joint resists strong inner pressure without leaking liquid.
You keep high installation speeds and total work quality inside tight rooms.
The build team got a 100% pass rate on high-pressure air and tiny particle tests. Factory inspectors confirmed total mechanical strength in every finished pipe joint. Workers loved this manual welding tool because it is portable and gives clean heat. This reliable setup improves your chemical lines for every high-purity piping job.
The MM-Tech IRW 110 manual infrared welding machine uses safe radiant energy. You stop foreign metals because no warm metal plates rub plastic pipes. Smart heat controls send clean energy straight into the material. Radiant heat tech creates top joint strength for every cleanroom installation. Modern joining technology guards your pipe build against stray metals and surface dust. MM-Tech supports your quality checks through key benefits:
A 2-year solid product warranty
A 10-year reliable spare parts guarantee
Continuous 24/7 client help services
This non-contact heating method applies soft, constant energy to protect pipe seams from heavy metals, raw metals, base metals, scrap metals, trace metals, or loose metals. Reach out to our technical team today for system specs, engineering solutions, work plans, or live product testing!
FAQ
Why use a non-contact process in cleanrooms?
An infrared welding machine uses non-contact thermal radiation. Direct radiant heat warms pipe ends cleanly. Non-contact heat avoids hot metals. This clean joining process keeps heat distribution stable, so trace metals, raw metals, and foreign metals stay away. This heat process delivers maximum seal strength for every critical fab application.
Which advanced polymers work with this non-contact welding technology?
You weld high-performance thermoplastics like PVDF, PFA, ECTFE, PPH, and PP. Controlled non-contact heat melts polymer ends cleanly. Radiant heat builds exceptional weld seam strength. Clean heat protects purity. This warming process builds reliable joint connections. Your fusion process avoids heavy metals, alloy metals, and base metals.
How does this joining process compare to traditional contact welding technologies?
Older welding technologies use direct contact hot plates. Direct contact rubs hot metals against plastic, introducing loose metals and scrap metals into fluid paths. Radiant heat replaces hot plates in this non-contact welding technology. Your thermal process applies clean heat to protect purity while keeping joint strength.
How do you verify joint quality during factory inspections?
Your site crew performs strict qa/qc checks through pressure testing and particle counting. Radiant heat ensures even plastic fusion. Your inspection process confirms every weld. Precise pressure control delivers joint strength with a clean weld joint. This reliable joining process creates a leak-free weld during every single weld process.
